SKU: UCPX05D1-NTN

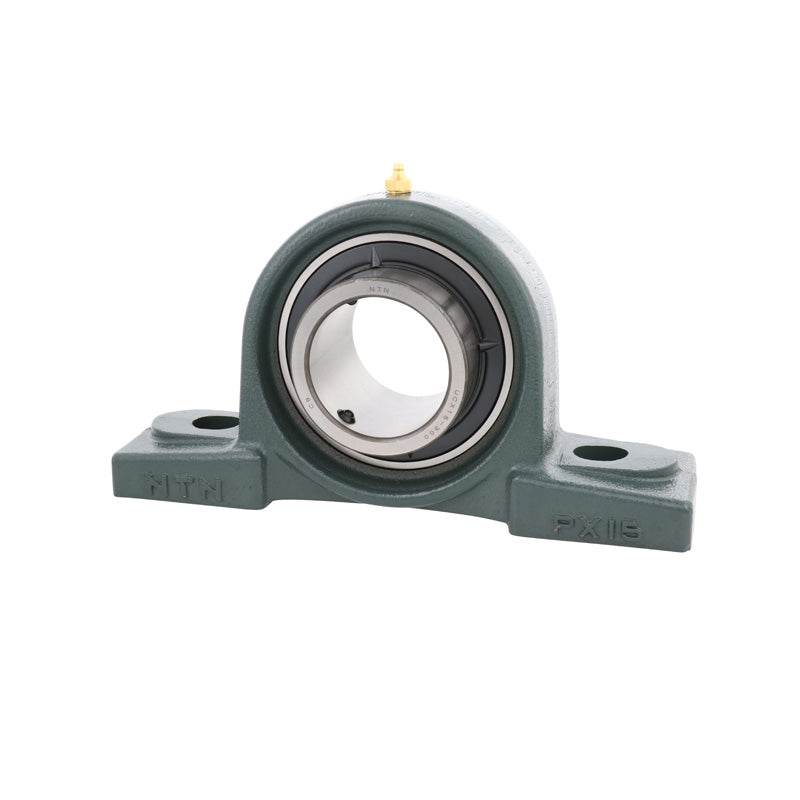

NTN UCPX05D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days
NTN UCPX05D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
In stock
Price Break
3+
CHF 35.07
4+
CHF 33.65
9+
CHF 32.94
19+
CHF 31.88
49+
CHF 31.17
99+
CHF 29.40
499+
CHF 24.79
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCPX
- Bolt Hole Centres:
- 119mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| H | 44.4mm |
| L | 159mm |
| J | 119mm |
| A | 51mm |
| N | 17mm |
| N<sub>1</sub> | 20mm |
| H<sub>1</sub> | 18mm |
| H<sub>2</sub> | 85mm |
| L<sub>1</sub> | 50mm |
| B | 38.1mm |
| S | 15.9mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 21.6 kN |
| Static load C<sub>0r</sub> | 11.3 kN |
| Fatigue load limit C<sub>u</sub> | 0.795 kN |
| --- | Unit information |
| Mass | 1.4 kg |
