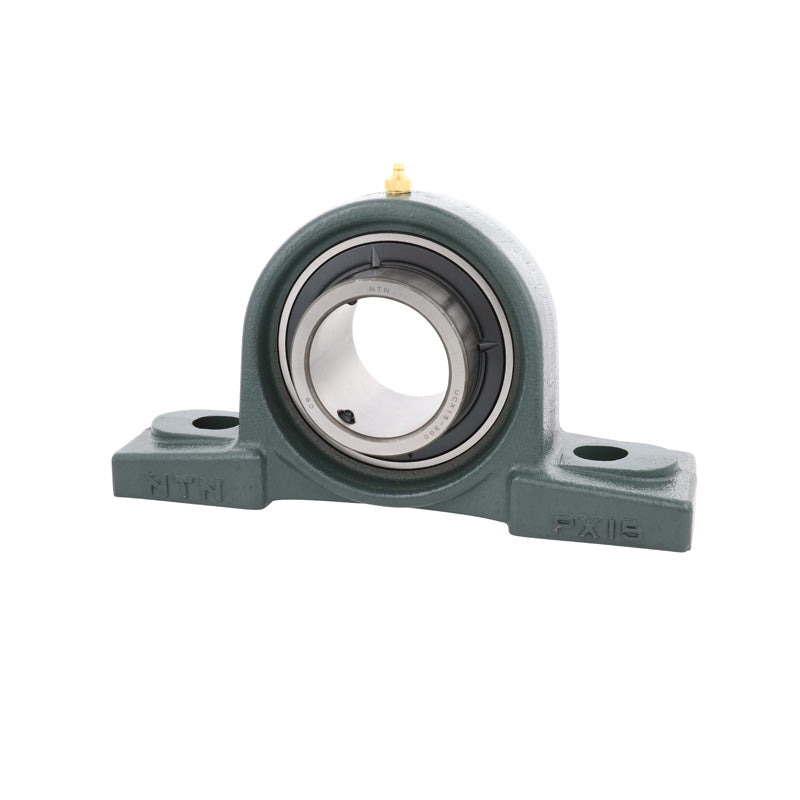

NTN UCPX07D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
NTN UCPX07D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
In stock
Price Break
3+
CHF 31.72
4+
CHF 29.94
9+
CHF 29.58
19+
CHF 29.22
49+
CHF 28.87
99+
CHF 28.51
499+
CHF 26.73
999+
CHF 26.37
1999+
CHF 26.02
2999+
CHF 25.66
4999+
CHF 24.95
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCPX
- Bolt Hole Centres:
- 144mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| H | 54mm |
| L | 203mm |
| J | 144mm |
| A | 57mm |
| N | 17mm |
| N<sub>1</sub> | 20mm |
| H<sub>1</sub> | 21mm |
| H<sub>2</sub> | 105mm |
| L<sub>1</sub> | 60mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 2.4 kg |
