SKU: UCPX08-108D1-NTN

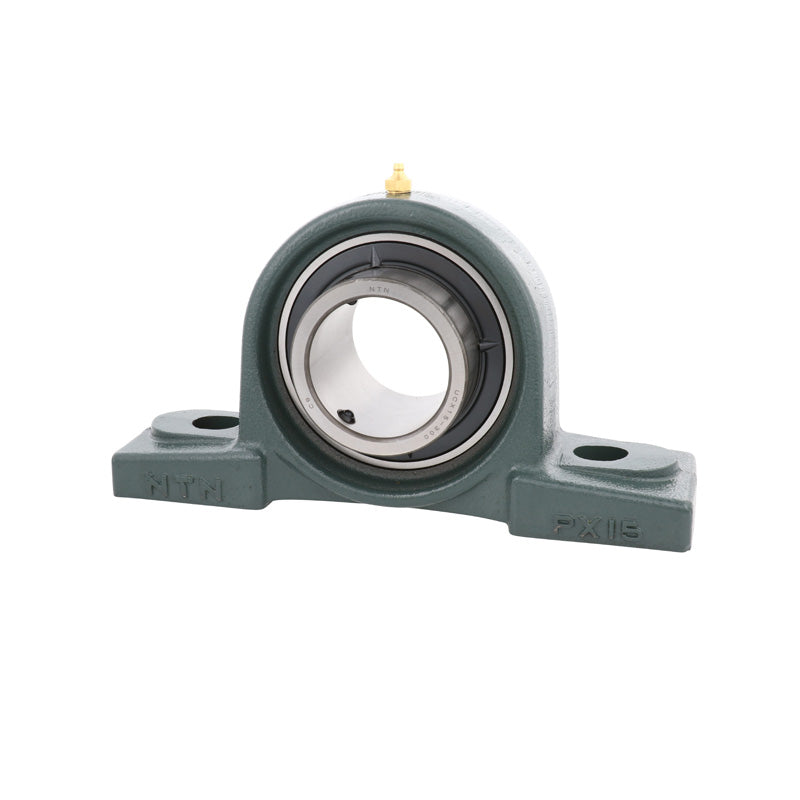

NTN UCPX08-108D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert - Allow 2-3 Days
NTN UCPX08-108D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert - Allow 2-3 Days
Regular price
CHF 49.00
ex VAT
Regular price
Sale price
CHF 49.00
ex VAT
In stock
Price Break
3+
CHF 38.88
4+
CHF 36.69
9+
CHF 36.25
19+
CHF 35.82
49+
CHF 35.38
99+
CHF 34.94
499+
CHF 32.76
999+
CHF 32.32
1999+
CHF 31.89
2999+
CHF 31.45
4999+
CHF 30.58
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCPX
- Bolt Hole Centres:
- 6-5/32 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-1/2 inch |
| H | 2-5/16 inch |
| L | 8-3/4 inch |
| J | 6-5/32 inch |
| A | 2-5/8 inch |
| N | 25/32 inch |
| N<sub>1</sub> | 29/32 inch |
| H<sub>1</sub> | 1-1/32 inch |
| H<sub>2</sub> | 4-3/8 inch |
| L<sub>1</sub> | 2-9/16 inch |
| B | 1.937 inch |
| S | 0.748 inch |
| Fixing bolt | 5/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 6.4 lbs |
