SKU: UCPX12D1-NTN

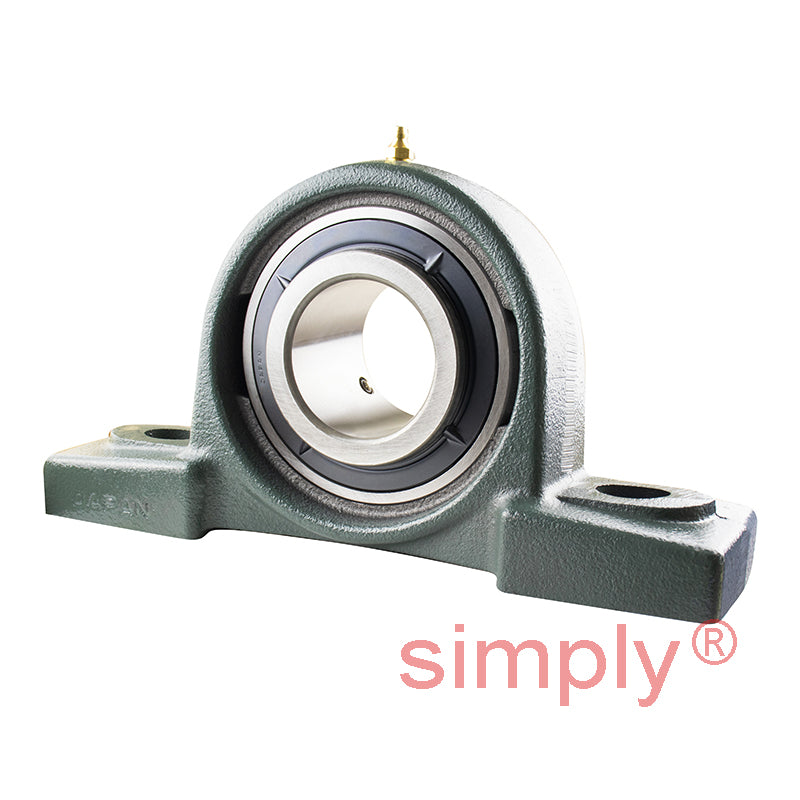

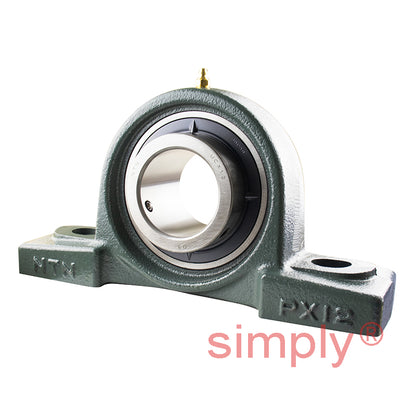

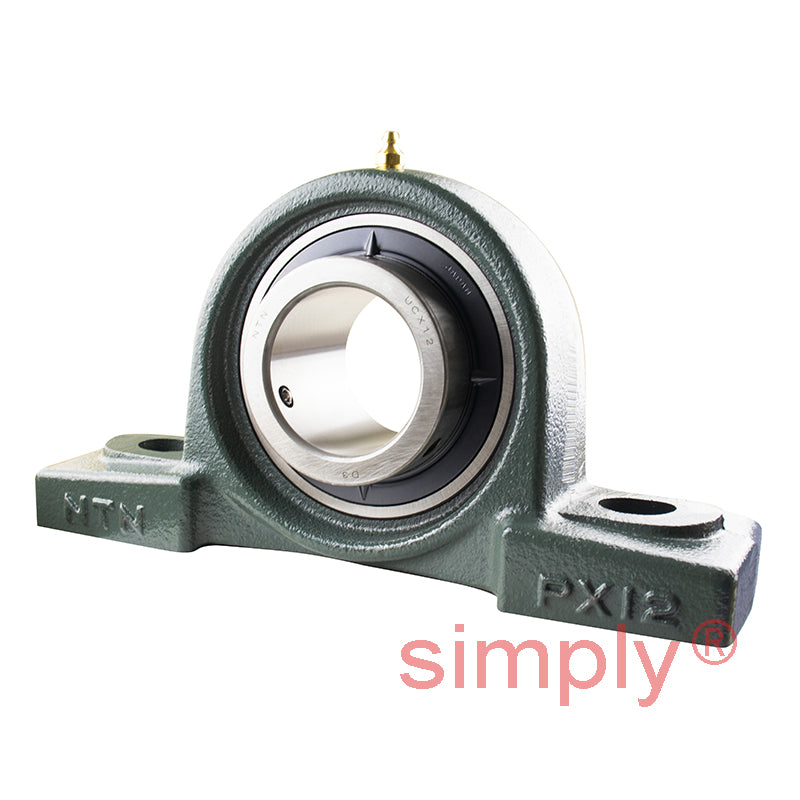

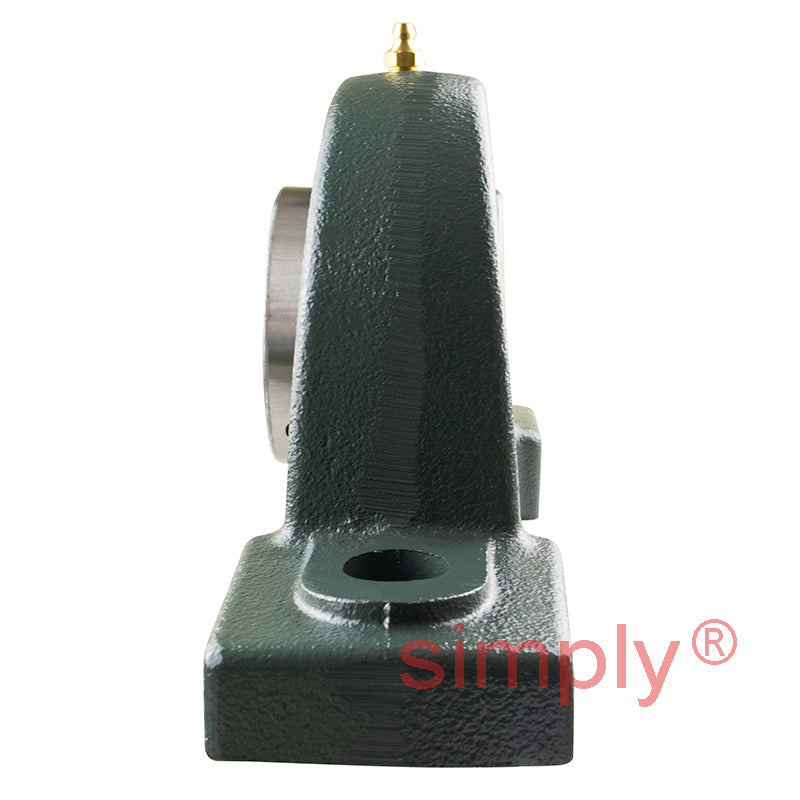

NTN UCPX12D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert
NTN UCPX12D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert
Regular price
CHF 153.00
ex VAT
Regular price
Sale price
CHF 153.00
ex VAT
In stock
Price Break
3+
CHF 121.89
4+
CHF 115.04
9+
CHF 113.67
19+
CHF 112.30
49+
CHF 110.93
99+
CHF 109.56
499+
CHF 102.71
999+
CHF 101.34
1999+
CHF 99.97
2999+
CHF 98.60
4999+
CHF 95.87
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCPX
- Bolt Hole Centres:
- 203mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| H | 76.2mm |
| L | 286mm |
| J | 203mm |
| A | 83mm |
| N | 25mm |
| N<sub>1</sub> | 28mm |
| H<sub>1</sub> | 33mm |
| H<sub>2</sub> | 151mm |
| L<sub>1</sub> | 80mm |
| B | 65.1mm |
| S | 25.4mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 63.5 kN |
| Static load C<sub>0r</sub> | 40 kN |
| Fatigue load limit C<sub>u</sub> | 3.15 kN |
| --- | Unit information |
| Mass | 6.8 kg |
