SKU: UCPX18D1-NTN

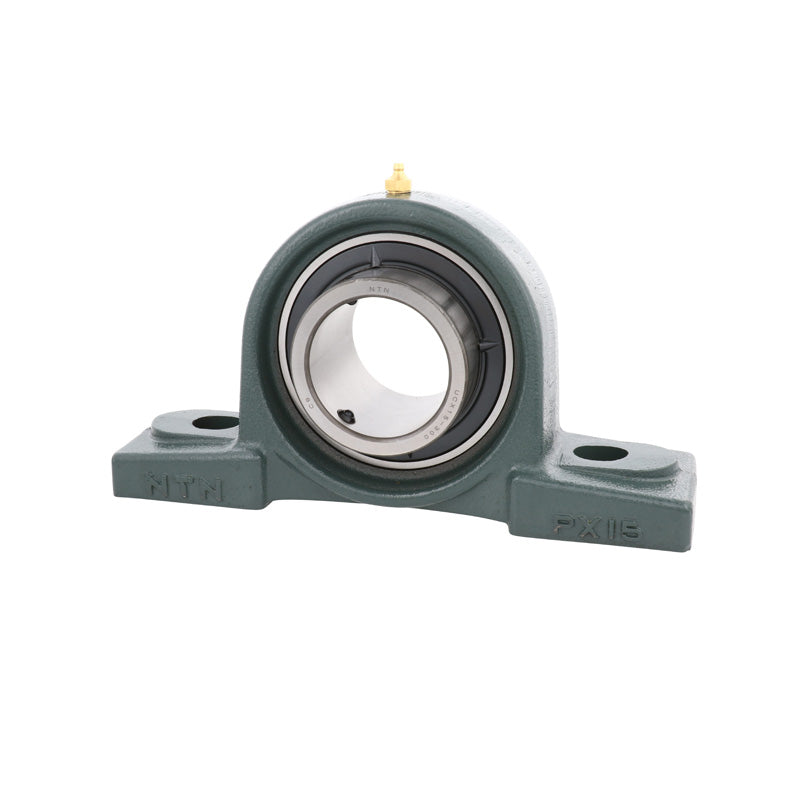

NTN UCPX18D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
NTN UCPX18D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
Regular price
CHF 254.00
ex VAT
Regular price
Sale price
CHF 254.00
ex VAT
In stock
Price Break
3+
CHF 202.15
4+
CHF 190.80
9+
CHF 188.53
19+
CHF 186.25
49+
CHF 183.98
99+
CHF 181.71
499+
CHF 170.36
999+
CHF 168.08
1999+
CHF 165.81
2999+
CHF 163.54
4999+
CHF 159.00
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCPX
- Bolt Hole Centres:
- 283mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| H | 101.6mm |
| L | 381mm |
| J | 283mm |
| A | 111mm |
| N | 27mm |
| N<sub>1</sub> | 30mm |
| H<sub>1</sub> | 40mm |
| H<sub>2</sub> | 206mm |
| L<sub>1</sub> | 110mm |
| B | 104mm |
| S | 42.9mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 121 kN |
| Static load C<sub>0r</sub> | 82 kN |
| Fatigue load limit C<sub>u</sub> | 5.55 kN |
| --- | Unit information |
| Mass | 16 kg |
