SKU: UCT.208

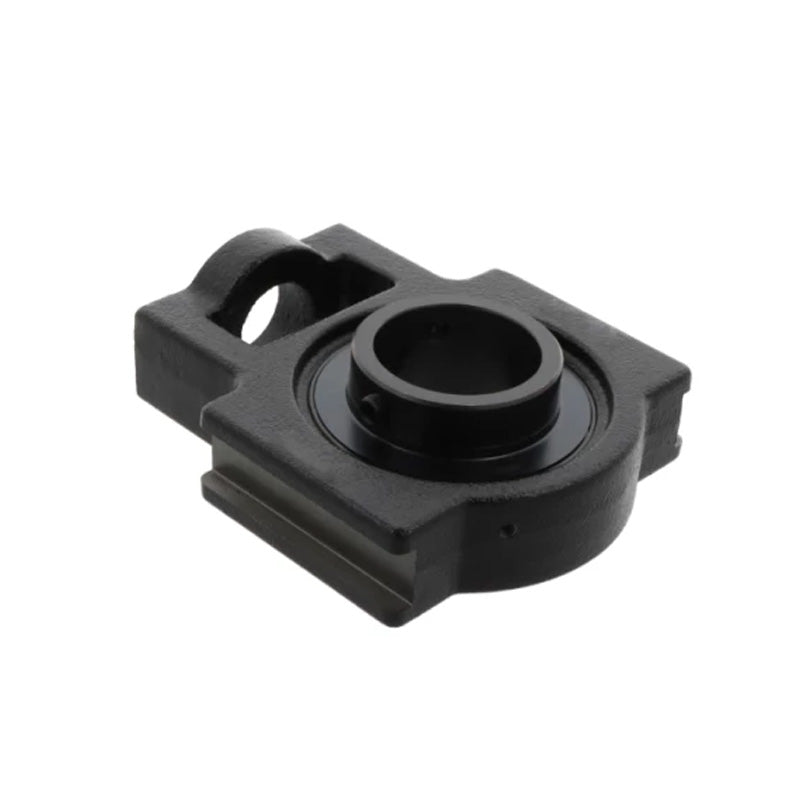

UCT208 Metric Series Cast Iron Take Up Unit Housing with 40mm Bore Bearing Unit
UCT208 Metric Series Cast Iron Take Up Unit Housing with 40mm Bore Bearing Unit
Regular price
CHF 28.00
ex VAT
Regular price
Sale price
CHF 28.00
ex VAT
Equivalent to: ST40
In stock
Price Break
3+
CHF 21.80
4+
CHF 20.57
9+
CHF 20.33
19+
CHF 20.08
49+
CHF 19.84
99+
CHF 19.59
499+
CHF 18.37
999+
CHF 18.12
1999+
CHF 17.88
2999+
CHF 17.63
4999+
CHF 17.14
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: ST40
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCT
Technical
Technical
| d | 40mm |
|---|---|
| o | 19mm |
| g | 16mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 83mm |
| k | 16mm |
| e | 102mm |
| a | 114mm |
| W | 144mm |
| j | 49mm |
| L | 33mm |
| h | 88mm |
| Bi | 49.2mm |
| n | 19mm |
| Weight | 2.4 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
