SKU: UCT.210

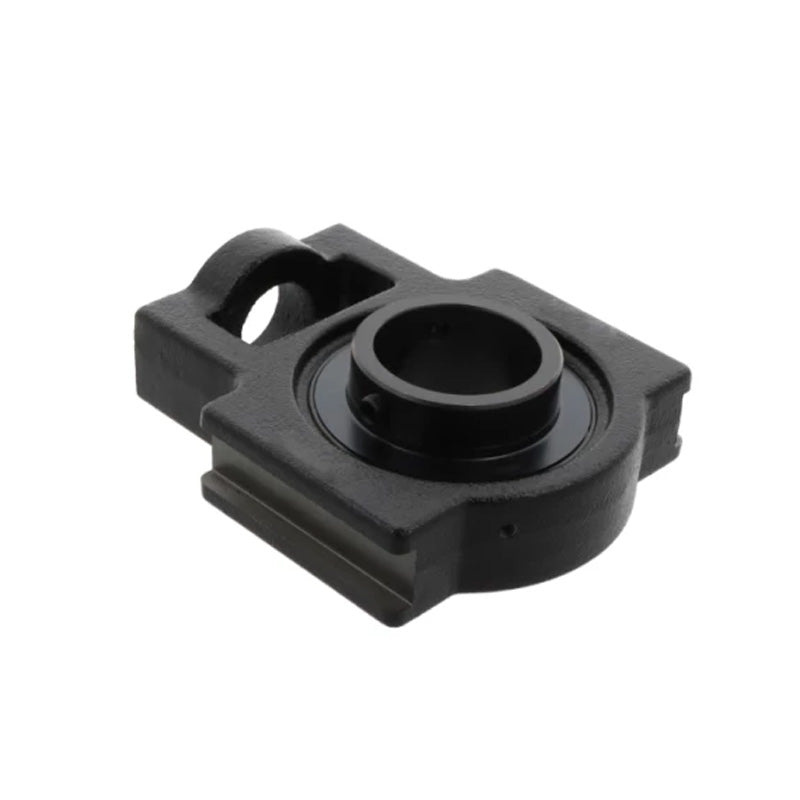

UCT210 Metric Series Cast Iron Take Up Unit Housing with 50mm Bore Bearing Unit
UCT210 Metric Series Cast Iron Take Up Unit Housing with 50mm Bore Bearing Unit
Regular price
CHF 37.00
ex VAT
Regular price
Sale price
CHF 37.00
ex VAT
Equivalent to: ST50
In stock
Price Break
3+
CHF 29.41
4+
CHF 27.76
9+
CHF 27.43
19+
CHF 27.10
49+
CHF 26.77
99+
CHF 26.44
499+
CHF 24.79
999+
CHF 24.46
1999+
CHF 24.13
2999+
CHF 23.79
4999+
CHF 23.13
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: ST50
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCT
Technical
Technical
| d | 50mm |
|---|---|
| o | 19mm |
| g | 16mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 86mm |
| k | 16mm |
| e | 102mm |
| a | 117mm |
| W | 149mm |
| j | 49mm |
| L | 37mm |
| h | 90mm |
| Bi | 51.6mm |
| n | 19mm |
| Weight | 2.5 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
