SKU: UCT.211.TS.CHAL

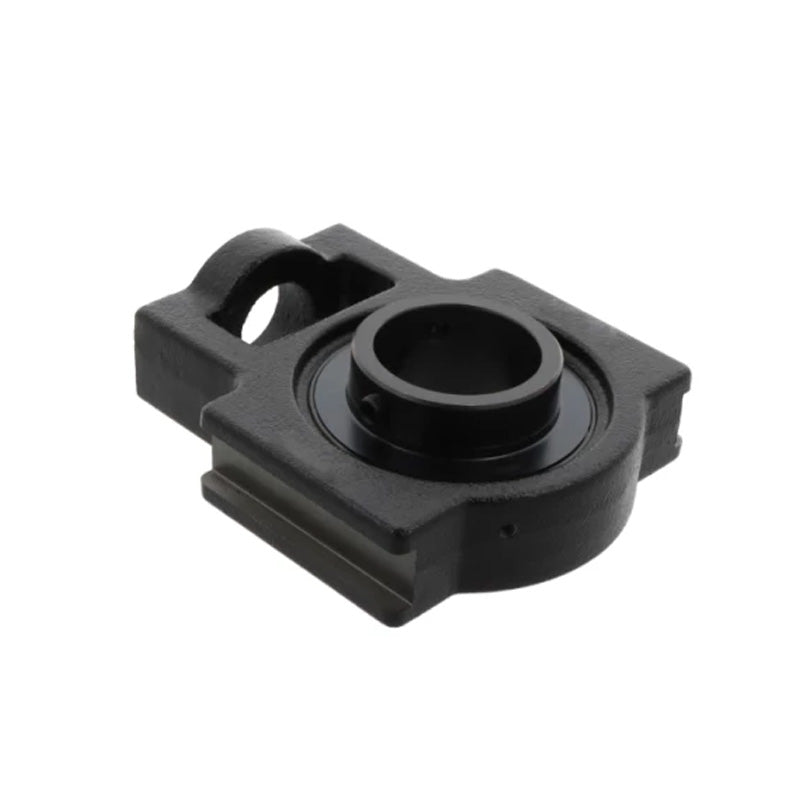

Challenge / FK UCT211 Metric Cast Iron Take Up Unit Housing with 55mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCT211 Metric Cast Iron Take Up Unit Housing with 55mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 108.00
ex VAT
Regular price
Sale price
CHF 108.00
ex VAT
Equivalent to: UCT.211
In stock
Price Break
3+
CHF 85.75
5+
CHF 80.94
9+
CHF 79.97
19+
CHF 79.01
49+
CHF 78.05
74+
CHF 77.08
99+
CHF 72.27
199+
CHF 71.30
249+
CHF 70.34
499+
CHF 69.37
999+
CHF 67.45
Share this product
Description
Description
UCT Cast Iron Take Up Unit Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCT.211
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 55mm
- Style:
- UCT
Technical
Technical
| Shaft Diameter d | 55mm |
|---|---|
| Nut Slot Width o | 25mm |
| Distance g | 19mm |
| Dimention p | 102mm |
| Dimention q | 64mm |
| Hole s | 35mm |
| Dimention b | 95mm |
| Slot Width k | 22mm |
| Distance Between Slots e | 130mm |
| Overall Casting Depth a | 146mm |
| Width w | 171mm |
| Diameter j | 64mm |
| Casting Width at Slots l | 41mm |
| Dimension h | 106mm |
| Grub Screws x 2 | M10X1.25 |
| Load Rating (Dynamic) | 3400kg |
| Load Rating (Static) | 2550kg |
| Max Speed | 1600 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC211 |
| Housing No | T211 |
