SKU: UCT.212

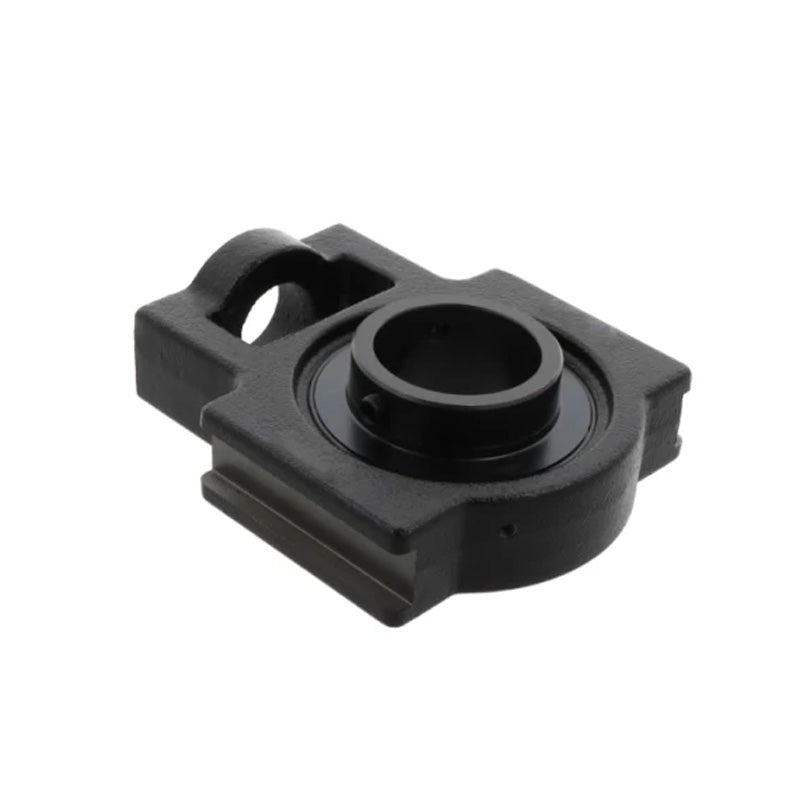

UCT212 Metric Series Cast Iron Take Up Unit Housing with 60mm Bore Bearing Unit
UCT212 Metric Series Cast Iron Take Up Unit Housing with 60mm Bore Bearing Unit
Regular price
CHF 62.00
ex VAT
Regular price
Sale price
CHF 62.00
ex VAT
Equivalent to: ST60
In stock
Price Break
3+
CHF 48.91
4+
CHF 46.16
9+
CHF 45.61
19+
CHF 45.07
49+
CHF 44.52
99+
CHF 43.97
499+
CHF 41.22
999+
CHF 40.67
1999+
CHF 40.12
2999+
CHF 39.57
4999+
CHF 38.47
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: ST60
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCT
Technical
Technical
| d | 60mm |
|---|---|
| o | 32mm |
| g | 19mm |
| p | 102mm |
| q | 64mm |
| s | 35mm |
| b | 102mm |
| k | 22mm |
| e | 130mm |
| a | 146mm |
| W | 194mm |
| j | 64mm |
| L | 46mm |
| h | 119mm |
| Bi | 65.1mm |
| n | 25.4mm |
| Weight | 5.0 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Rec max speed | 2800 rpm |
