SKU: UCT207-20-SNR

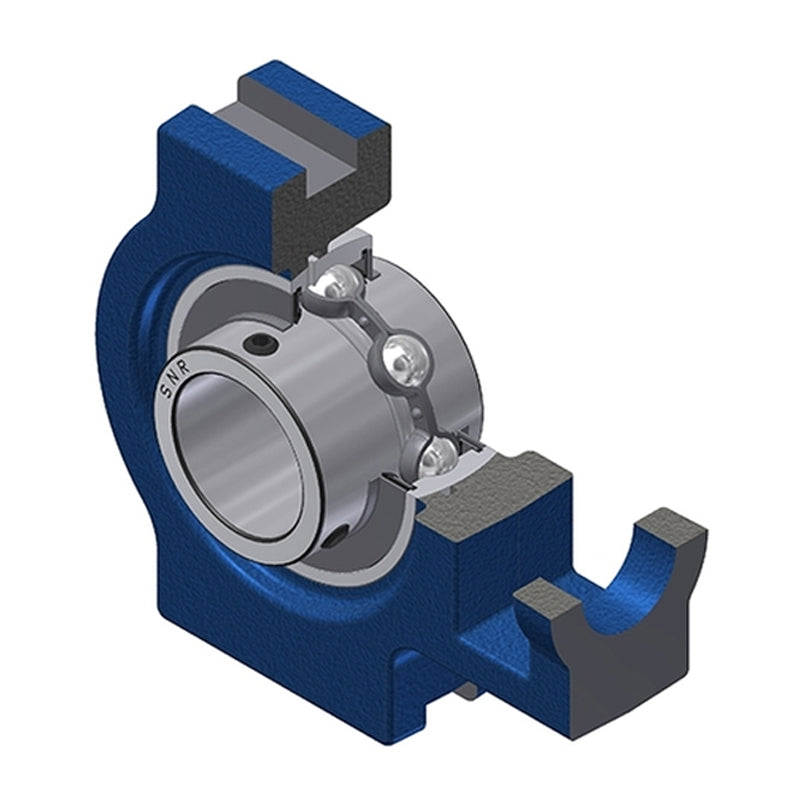

SNR UCT207-20 Imperial Cast Iron Take Up Unit with 1-1/4 inch Bore Bearing Unit - Allow 2-3 Days
SNR UCT207-20 Imperial Cast Iron Take Up Unit with 1-1/4 inch Bore Bearing Unit - Allow 2-3 Days
Regular price
CHF 41.00
ex VAT
Regular price
Sale price
CHF 41.00
ex VAT
In stock
Price Break
3+
CHF 32.60
4+
CHF 30.77
9+
CHF 30.40
19+
CHF 30.04
49+
CHF 29.67
99+
CHF 29.30
499+
CHF 27.47
999+
CHF 27.10
1999+
CHF 26.74
2999+
CHF 26.37
4999+
CHF 25.64
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-1/4 inch |
| A | 37mm |
| A1 | 12mm |
| A2 | 30mm |
| B | 42.9mm |
| H | 102mm |
| H1 | 89mm |
| H2 | 64mm |
| L | 129mm |
| L1 | 78mm |
| L2 | 13mm |
| L3 | 64mm |
| N | 22mm |
| N1 | 16mm |
| N2 | 37mm |
| S | 17.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.63 kg |
