• SNR UCT208-24 Imperial Cast Iron Take Up Unit with 1-1/2 inch Bore Bearing Unit - Allow 2-3 Days
1 1

SKU: UCT208-24-SNR

SNR UCT208-24 Imperial Cast Iron Take Up Unit with 1-1/2 inch Bore Bearing Unit - Allow 2-3 Days

SNR UCT208-24 Imperial Cast Iron Take Up Unit with 1-1/2 inch Bore Bearing Unit - Allow 2-3 Days
CHF 44.00 ex VAT
CHF 44.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 34.31
4+ CHF 32.39
9+ CHF 32.00
19+ CHF 31.62
49+ CHF 31.23
99+ CHF 30.84
499+ CHF 28.92
999+ CHF 28.53
1999+ CHF 28.15
2999+ CHF 27.76
4999+ CHF 26.99
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

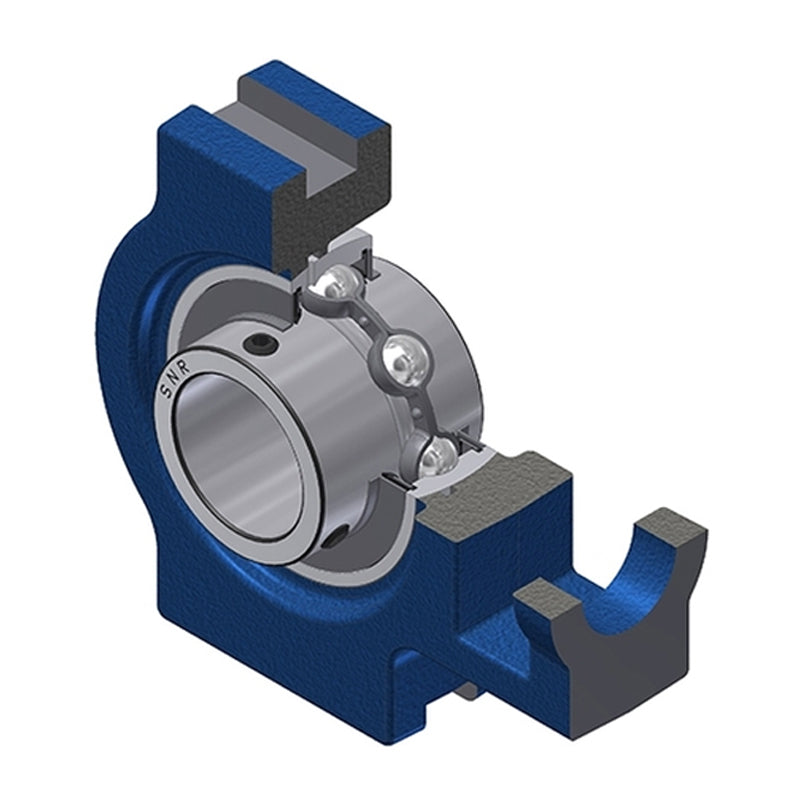

UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
UCT
Technical
--- Dimensions
Shaft diameter d 1-1/2 inch
A 49mm
A1 16mm
A2 33mm
B 49.2mm
H 114mm
H1 102mm
H2 83mm
L 144mm
L1 88mm
L2 16mm
L3 83mm
N 29mm
N1 19mm
N2 49mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.38 kg
