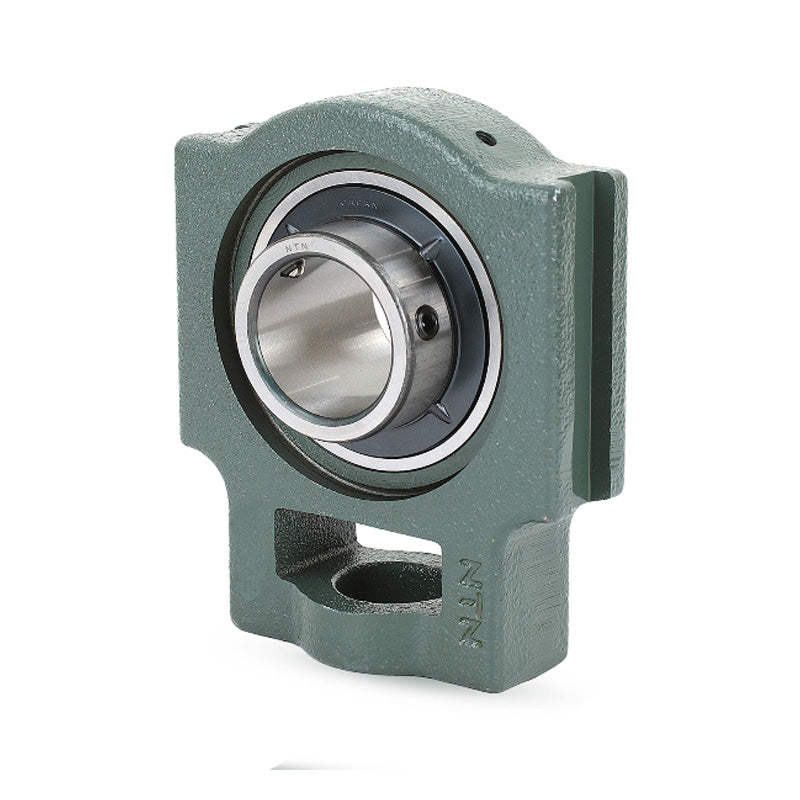

• NTN UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit - Allow 2-3 Days
1 1

SKU: UCT212D1-NTN

NTN UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit - Allow 2-3 Days

NTN UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit - Allow 2-3 Days
CHF 81.00 ex VAT
CHF 81.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 63.92
4+ CHF 60.33
9+ CHF 59.61
19+ CHF 58.89
49+ CHF 58.17
99+ CHF 57.46
499+ CHF 53.87
999+ CHF 53.15
1999+ CHF 52.43
2999+ CHF 51.71
4999+ CHF 50.27
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter 60mm
N<sub>1</sub> 32mm
L<sub>2</sub> 21mm
H<sub>2</sub> 102mm
N<sub>2</sub> 64mm
N 35mm
L<sub>3</sub> 102mm
A<sub>1</sub> 22mm
H<sub>1</sub> 130mm
H 146mm
L 194mm
A<sub>2</sub> 42mm
A 64mm
r 75mm
L<sub>1</sub> 119mm
B 65.1mm
S 25.4mm
--- Load rating
Dynamic load C<sub>r</sub> 58 kN
Static load C<sub>0r</sub> 36 kN
Fatigue load limit C<sub>u</sub> 2.83 kN
--- Unit information
Mass 4.8 kg
