SKU: UCT308D1-NTN

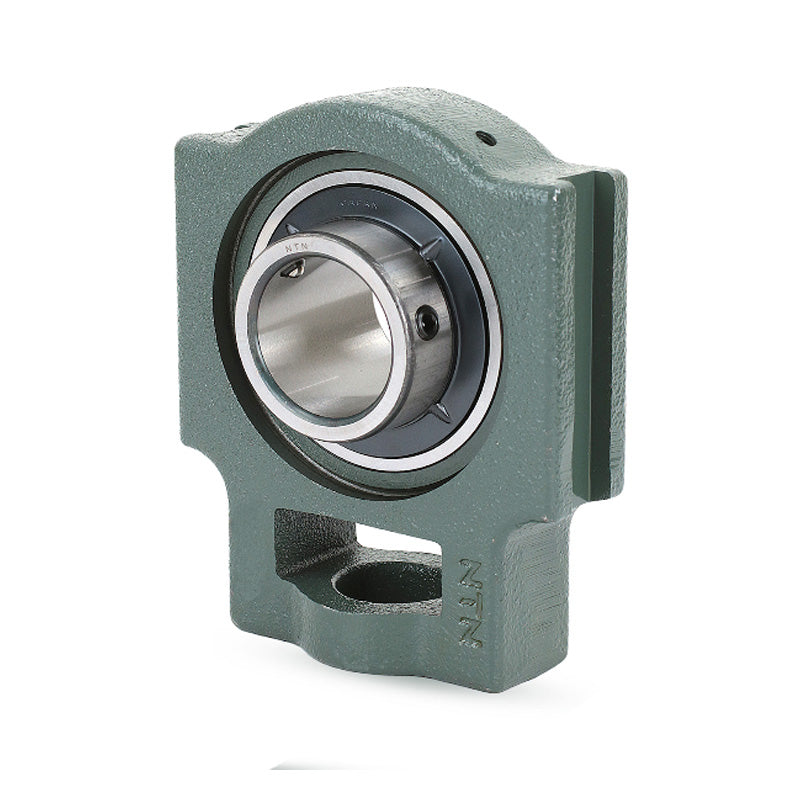

NTN UCT308D1 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit - Allow 2-3 Days
NTN UCT308D1 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit - Allow 2-3 Days
Regular price
CHF 99.00
ex VAT
Regular price
Sale price
CHF 99.00
ex VAT
In stock
Price Break
3+
CHF 87.71
4+
CHF 84.17
9+
CHF 82.40
19+
CHF 79.74
49+
CHF 77.97
99+
CHF 73.54
499+
CHF 62.02
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| N<sub>1</sub> | 22mm |
| L<sub>2</sub> | 19mm |
| H<sub>2</sub> | 83mm |
| N<sub>2</sub> | 50mm |
| N | 32mm |
| L<sub>3</sub> | 89mm |
| A<sub>1</sub> | 18mm |
| H<sub>1</sub> | 112mm |
| H | 124mm |
| L | 162mm |
| A<sub>2</sub> | 34mm |
| A | 50mm |
| r | 62mm |
| L<sub>1</sub> | 100mm |
| B | 52mm |
| S | 19mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 45 kN |
| Static load C<sub>0r</sub> | 24 kN |
| Fatigue load limit C<sub>u</sub> | 1.83 kN |
| --- | Unit information |
| Mass | 3 kg |
