SKU: UCT311D1-NTN

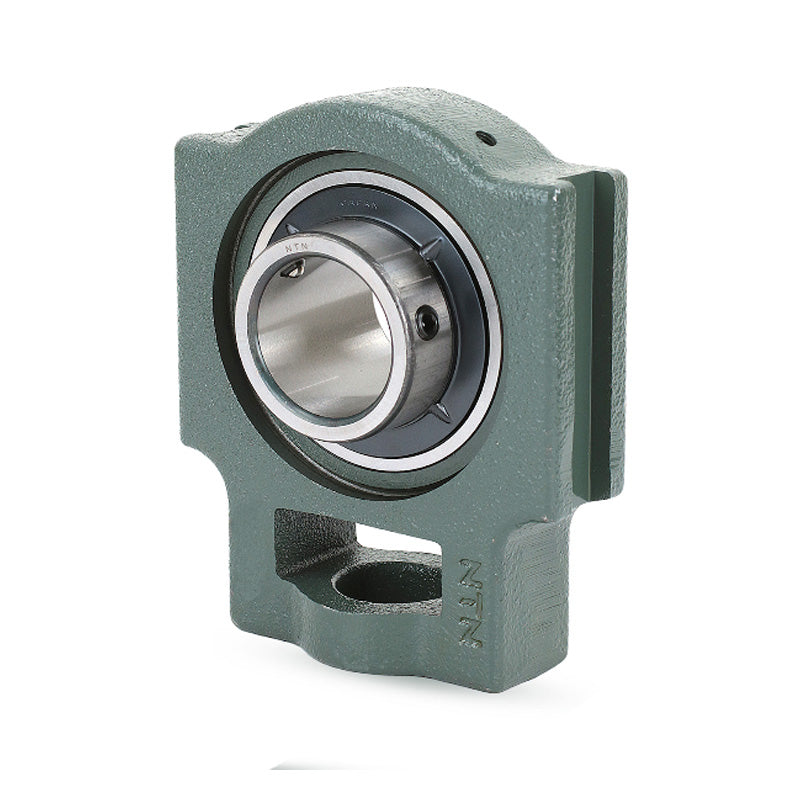

NTN UCT311D1 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit - Allow 2-3 Days
NTN UCT311D1 Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit - Allow 2-3 Days
Regular price
CHF 174.00
ex VAT
Regular price
Sale price
CHF 174.00
ex VAT
In stock
Price Break
3+
CHF 153.63
4+
CHF 147.42
9+
CHF 144.32
19+
CHF 139.66
49+
CHF 136.56
99+
CHF 128.80
499+
CHF 108.63
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| N<sub>1</sub> | 29mm |
| L<sub>2</sub> | 23mm |
| H<sub>2</sub> | 105mm |
| N<sub>2</sub> | 66mm |
| N | 39mm |
| L<sub>3</sub> | 115mm |
| A<sub>1</sub> | 22mm |
| H<sub>1</sub> | 150mm |
| H | 163mm |
| L | 207mm |
| A<sub>2</sub> | 44mm |
| A | 66mm |
| r | 80mm |
| L<sub>1</sub> | 127mm |
| B | 66mm |
| S | 25mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 79.5 kN |
| Static load C<sub>0r</sub> | 45 kN |
| Fatigue load limit C<sub>u</sub> | 3.5 kN |
| --- | Unit information |
| Mass | 6.3 kg |
