SKU: UCT314
UCT314 Metric Cast Iron Take Up Unit Housing with 70mm Bore Insert
UCT314 Metric Cast Iron Take Up Unit Housing with 70mm Bore Insert
Regular price
CHF 119.00
ex VAT
Regular price
Sale price
CHF 119.00
ex VAT
In stock
Price Break
3+
CHF 94.04
4+
CHF 88.76
9+
CHF 87.70
19+
CHF 86.65
49+
CHF 85.59
99+
CHF 84.53
499+
CHF 79.25
999+
CHF 78.19
1999+
CHF 77.14
2999+
CHF 76.08
4999+
CHF 73.97
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UCT

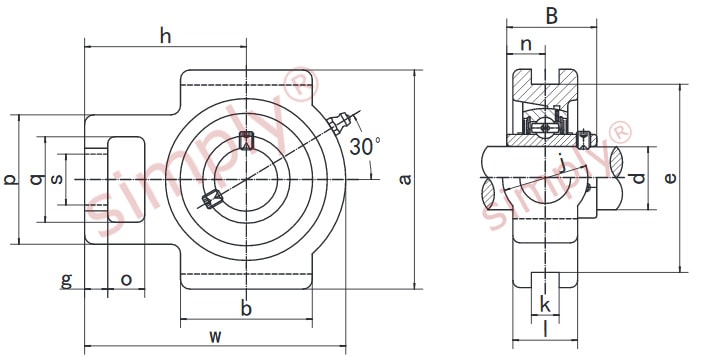

Technical
Technical
| d | 70mm |
|---|---|
| o | 36mm |
| g | 27mm |
| p | 130mm |
| q | 85mm |
| s | 46mm |
| b | 140mm |
| k | 26mm |
| e | 180mm |
| a | 202mm |
| w | 252mm |
| j | 90mm |
| l | 52mm |
| h | 155mm |
| B | 78mm |
| n | 33mm |
| Bearing no | UC314 |
| Housing no | T314 |
| Weight | 10.9 kg |
