SKU: UCTX05

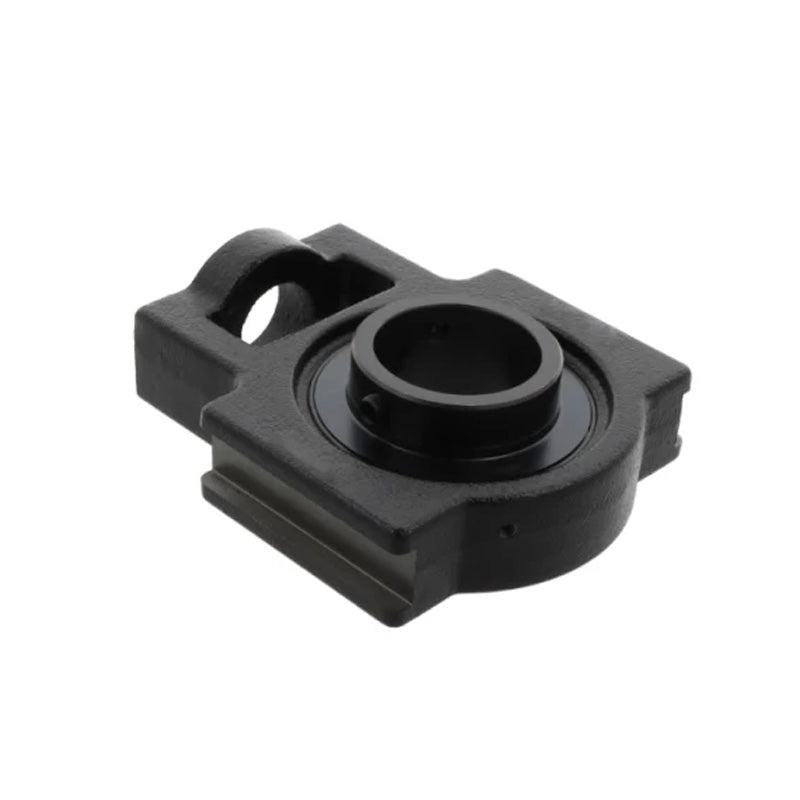

UCTX05 Metric Cast Iron Take Up Unit Housing with 25mm Bore Insert
UCTX05 Metric Cast Iron Take Up Unit Housing with 25mm Bore Insert
Regular price
CHF 22.00
ex VAT
Regular price
Sale price
CHF 22.00
ex VAT
In stock
Price Break
3+
CHF 16.91
4+
CHF 15.96
9+
CHF 15.77
19+
CHF 15.58
49+
CHF 15.39
99+
CHF 15.20
499+
CHF 14.25
999+
CHF 14.06
1999+
CHF 13.87
2999+
CHF 13.68
4999+
CHF 13.30
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCTX
Technical
Technical
| d | 25mm |
|---|---|
| o | 16mm |
| g | 12mm |
| p | 56mm |
| q | 37mm |
| s | 22mm |
| b | 57mm |
| k | 12mm |
| e | 89mm |
| a | 102mm |
| w | 113mm |
| j | 28mm |
| l | 37mm |
| h | 70mm |
| B | 38.1mm |
| n | 15.9mm |
| Bearing no | UCX05 |
| Housing no | TX05 |
| Weight | 1.3 kg |
