SKU: UCTX07

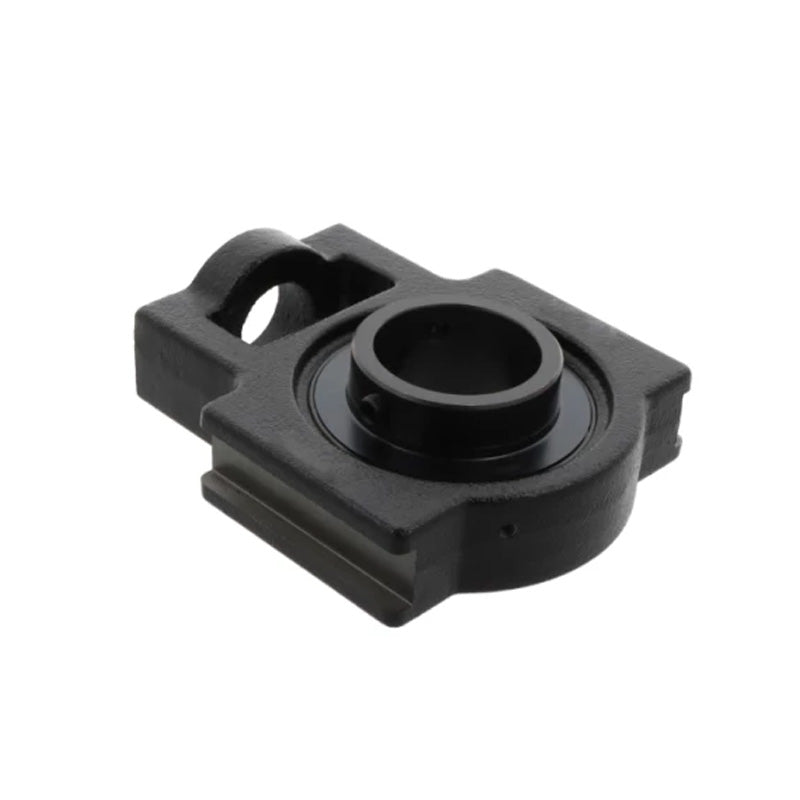

UCTX07 Metric Cast Iron Take Up Unit Housing with 35mm Bore Insert
UCTX07 Metric Cast Iron Take Up Unit Housing with 35mm Bore Insert
Regular price
CHF 32.00
ex VAT
Regular price
Sale price
CHF 32.00
ex VAT
In stock
Price Break
3+
CHF 25.16
4+
CHF 23.75
9+
CHF 23.47
19+
CHF 23.19
49+
CHF 22.90
99+
CHF 22.62
499+
CHF 21.21
999+
CHF 20.92
1999+
CHF 20.64
2999+
CHF 20.36
4999+
CHF 19.79
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCTX
Technical
Technical
| d | 35mm |
|---|---|
| o | 19mm |
| g | 17mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 83mm |
| k | 16mm |
| e | 102mm |
| a | 114mm |
| w | 144mm |
| j | 36mm |
| l | 49mm |
| h | 88mm |
| B | 49.2mm |
| n | 19mm |
| Bearing no | UCX07 |
| Housing no | TX07 |
| Weight | 2.6 kg |
