SKU: UCTX08

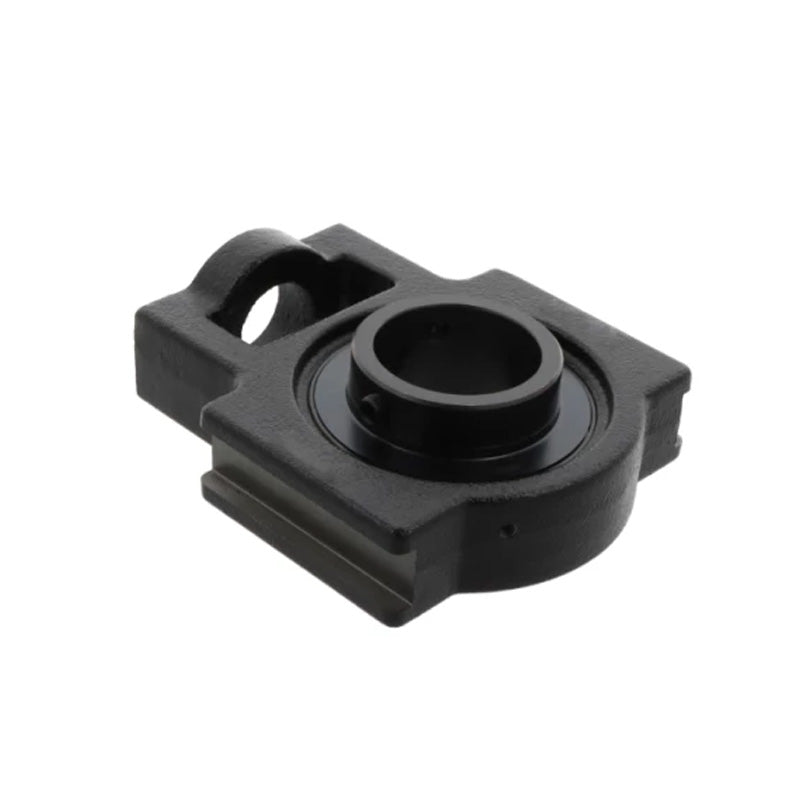

UCTX08 Metric Cast Iron Take Up Unit Housing with 40mm Bore Insert
UCTX08 Metric Cast Iron Take Up Unit Housing with 40mm Bore Insert
Regular price
CHF 35.56
ex VAT
Regular price
Sale price
CHF 35.56
ex VAT
In stock
Price Break
10+
CHF 31.65
19+
CHF 29.87
29+
CHF 29.51
39+
CHF 29.16
49+
CHF 28.80
74+
CHF 28.45
99+
CHF 26.67
199+
CHF 26.31
249+
CHF 25.96
499+
CHF 25.60
999+
CHF 24.89
Couldn't load pickup availability
Share this product
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCTX
Technical
Technical
| d | 40mm |
|---|---|
| o | 19mm |
| g | 17mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 83mm |
| k | 16mm |
| e | 102mm |
| a | 117mm |
| w | 144mm |
| j | 36mm |
| l | 49mm |
| h | 87mm |
| B | 49.2mm |
| n | 19mm |
| Bearing no | UCX08 |
| Housing no | TX08 |
| Weight | 2.5 kg |
