SKU: UCTX09-28
UCTX09-28 Imperial Cast Iron Take Up Unit Housing with 1-3/4 inch Bore Insert
UCTX09-28 Imperial Cast Iron Take Up Unit Housing with 1-3/4 inch Bore Insert
Regular price
CHF 41.25
ex VAT
Regular price
Sale price
CHF 41.25
ex VAT
In stock
Price Break
10+
CHF 36.71
19+
CHF 34.65
29+
CHF 34.24
39+
CHF 33.83
49+
CHF 33.41
74+
CHF 33.00
99+
CHF 30.94
199+
CHF 30.53
249+
CHF 30.11
499+
CHF 29.70
999+
CHF 28.88
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UCTX

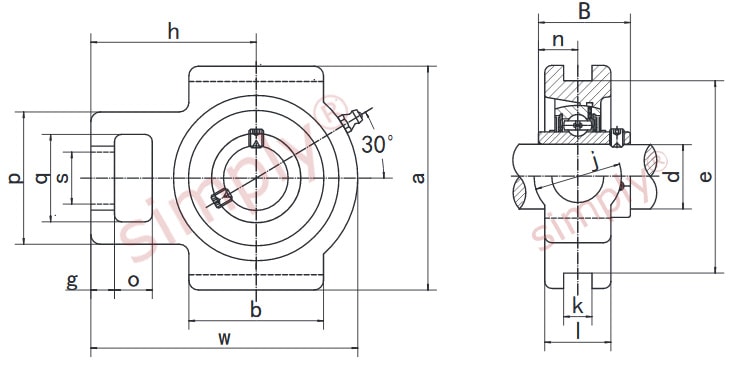

Technical
Technical
| d | 1-3/4 inch |
|---|---|
| o | 3/4 inch |
| g | 23/32 inch |
| p | 3-17/64 inch |
| q | 1-15/16 inch |
| s | 1-9/64 inch |
| b | 3-25/64 inch |
| k | 0.63 inch |
| e | 4-1/64 inch |
| a | 4-39/64 inch |
| w | 5-15/16 inch |
| j | 1-1/2 inch |
| l | 1-15/16 inch |
| h | 3-5/8 inch |
| B | 2.0315 inch |
| n | 0.748 inch |
| Bearing no | UCX09-28 |
| Housing no | TX09 |
| Weight | 2.7 kg |
