SKU: UCTX10

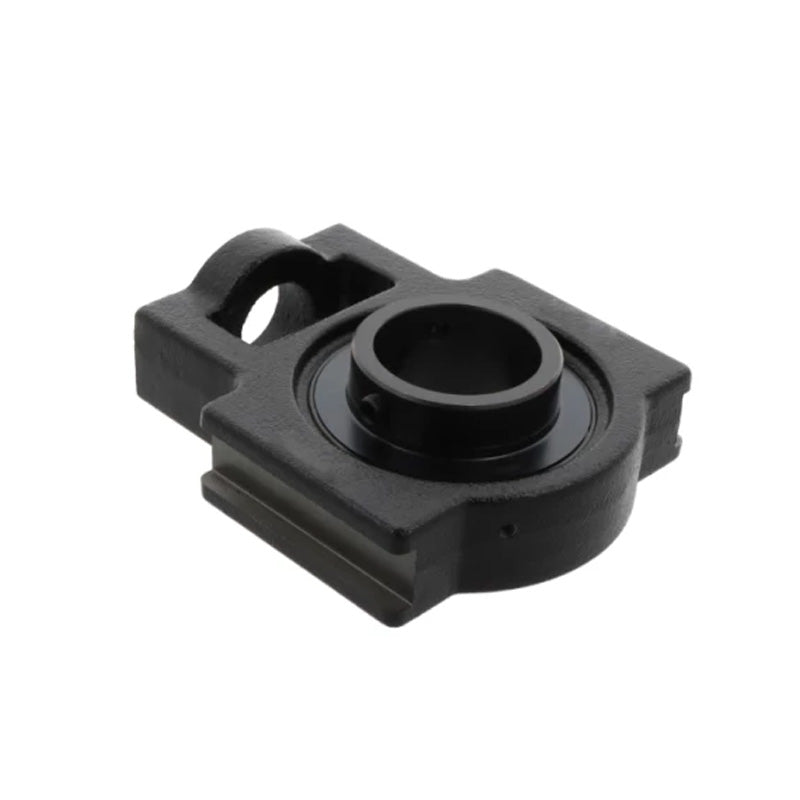

UCTX10 Metric Cast Iron Take Up Unit Housing with 50mm Bore Insert
UCTX10 Metric Cast Iron Take Up Unit Housing with 50mm Bore Insert
Regular price
CHF 63.61
ex VAT
Regular price
Sale price
CHF 63.61
ex VAT
In stock
Price Break
10+
CHF 56.61
19+
CHF 53.43
29+
CHF 52.80
39+
CHF 52.16
49+
CHF 51.52
74+
CHF 50.89
99+
CHF 47.71
199+
CHF 47.07
249+
CHF 46.44
499+
CHF 45.80
999+
CHF 44.53
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCTX
Technical
Technical
| d | 50mm |
|---|---|
| o | 25mm |
| g | 21mm |
| p | 102mm |
| q | 64mm |
| s | 35mm |
| b | 95mm |
| k | 22mm |
| e | 130mm |
| a | 146mm |
| w | 171mm |
| j | 42mm |
| l | 64mm |
| h | 106mm |
| B | 55.6mm |
| n | 22.2mm |
| Bearing no | UCX10 |
| Housing no | TX10 |
| Weight | 4.2 kg |
