SKU: UCTX10-32

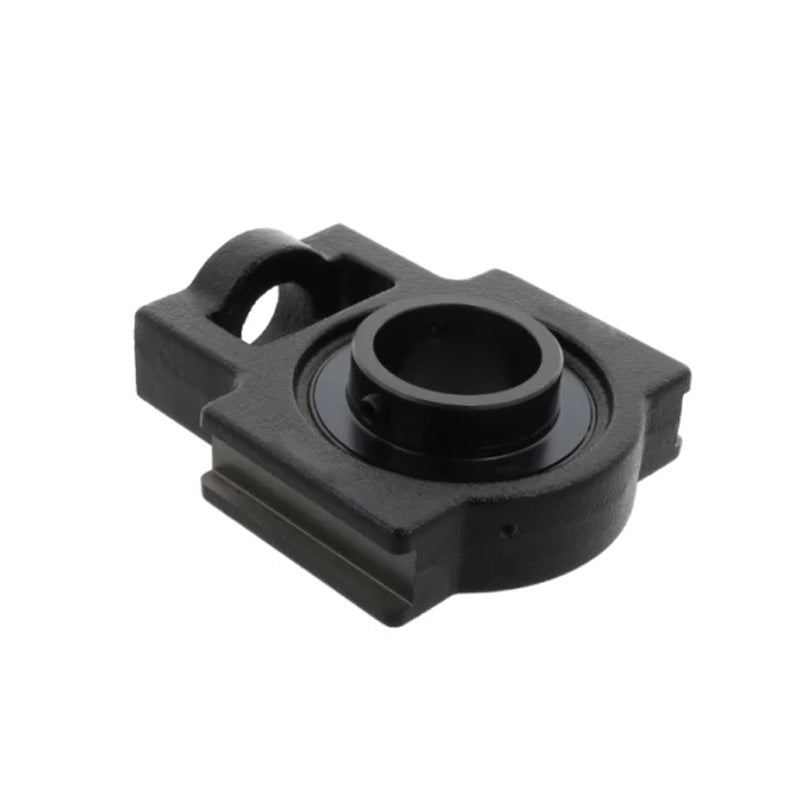

UCTX10-32 Imperial Cast Iron Take Up Unit Housing with 2 inch Bore Insert
UCTX10-32 Imperial Cast Iron Take Up Unit Housing with 2 inch Bore Insert
Regular price
CHF 43.13
ex VAT
Regular price
Sale price
CHF 43.13
ex VAT
In stock
Price Break
10+
CHF 38.39
19+
CHF 36.23
29+
CHF 35.80
39+
CHF 35.37
49+
CHF 34.94
74+
CHF 34.50
99+
CHF 32.35
199+
CHF 31.92
249+
CHF 31.48
499+
CHF 31.05
999+
CHF 30.19
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCTX
Technical
Technical
| d | 2 inch |
|---|---|
| o | 63/64 inch |
| g | 13/16 inch |
| p | 4-1/64 inch |
| q | 2-33/64 inch |
| s | 1-3/8 inch |
| b | 3-3/4 inch |
| k | 0.866 inch |
| e | 5-1/8 inch |
| a | 5-3/4 inch |
| w | 6-47/64 inch |
| j | 1-21/32 inch |
| l | 2-33/64 inch |
| h | 4-11/64 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bearing no | UCX10-32 |
| Housing no | TX10 |
| Weight | 4.2 kg |
