SKU: UCTX12

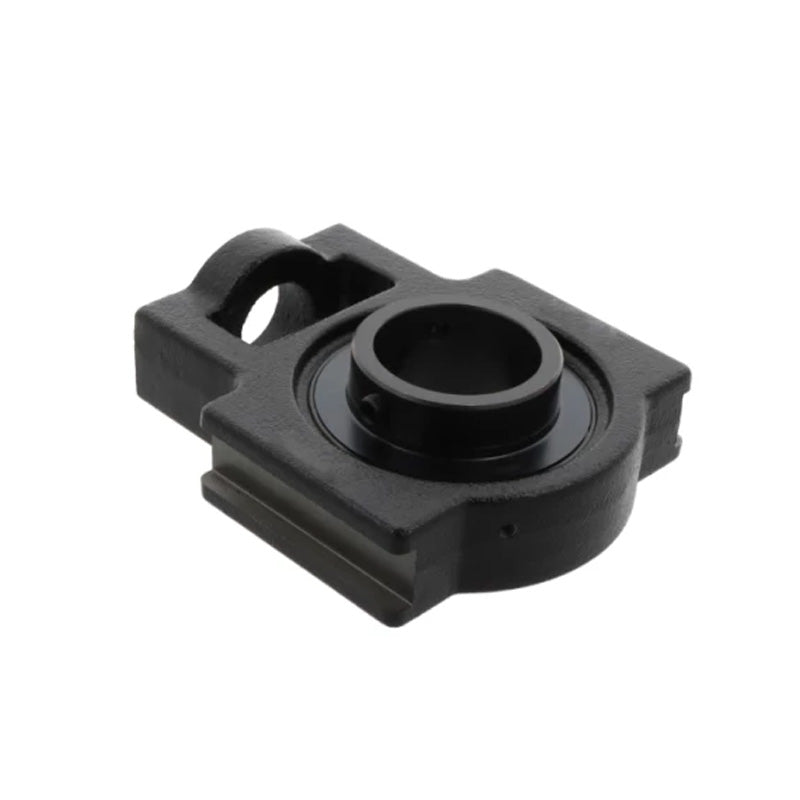

UCTX12 Metric Cast Iron Take Up Unit Housing with 60mm Bore Insert
UCTX12 Metric Cast Iron Take Up Unit Housing with 60mm Bore Insert
Regular price
CHF 72.06
ex VAT
Regular price
Sale price
CHF 72.06
ex VAT
In stock
Price Break
10+
CHF 64.13
19+
CHF 60.53
29+
CHF 59.81
39+
CHF 59.09
49+
CHF 58.37
74+
CHF 57.65
99+
CHF 54.05
199+
CHF 53.32
249+
CHF 52.60
499+
CHF 51.88
999+
CHF 50.44
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCTX
Technical
Technical
| d | 60mm |
|---|---|
| o | 32mm |
| g | 23mm |
| p | 111mm |
| q | 70mm |
| s | 41mm |
| b | 121mm |
| k | 26mm |
| e | 151mm |
| a | 167mm |
| w | 224mm |
| j | 48mm |
| l | 70mm |
| h | 137mm |
| B | 65.1mm |
| n | 25.4mm |
| Bearing no | UCX12 |
| Housing no | TX12 |
| Weight | 7.3 kg |
