SKU: UCUP209D1-NTN

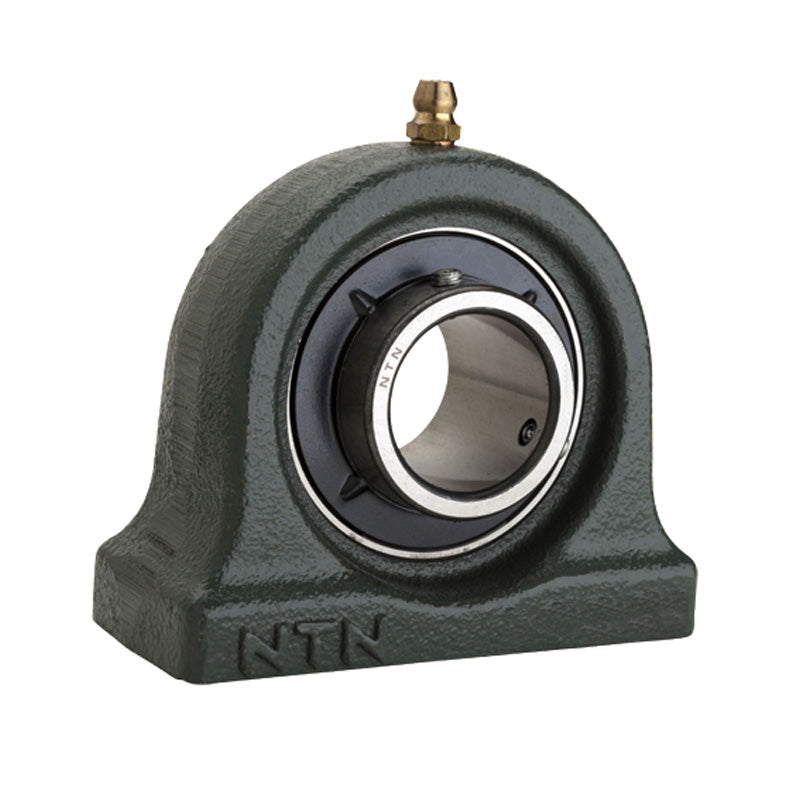

NTN UCUP209D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days
NTN UCUP209D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
3+
CHF 65.78
4+
CHF 63.12
9+
CHF 61.79
19+
CHF 59.80
49+
CHF 58.47
99+
CHF 55.15
499+
CHF 46.51
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCUP
- Bolt Hole Centres:
- 90mm
Technical
Technical
| Shaft diameter | 45mm |
|---|---|
| H | 54.2mm |
| L | 120mm |
| J | 90mm |
| A | 54mm |
| j | 25mm |
| H<sub>1</sub> | 13mm |
| H<sub>2</sub> | 108mm |
| B | 49.2mm |
| S | 19mm |
| N | M14X2 |
| Mass | 2.1 kg |
