SKU: UCW.201-8

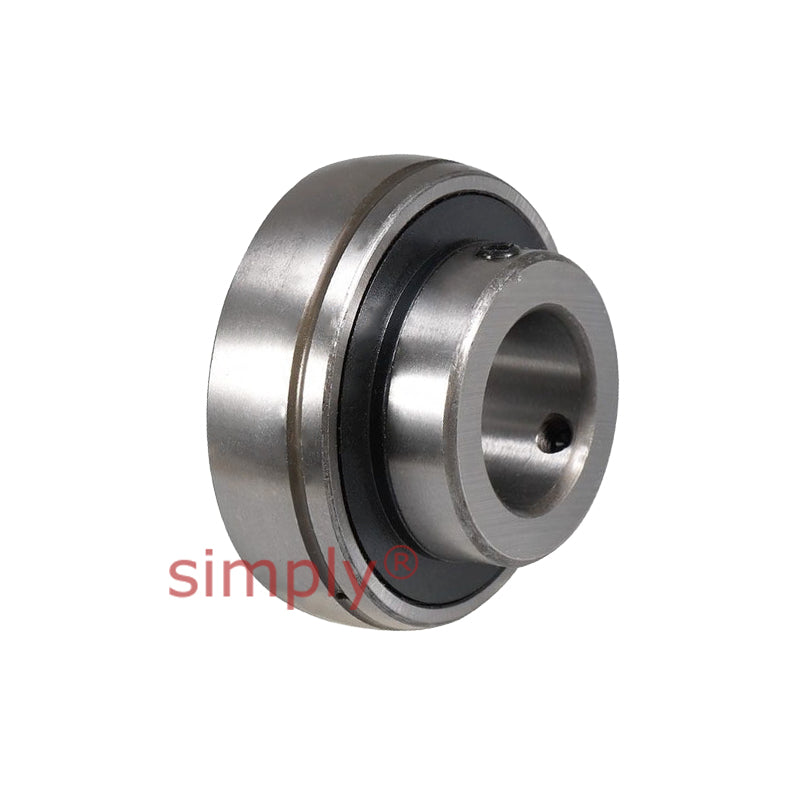

UCW201-8 Imperial Bearing Insert with 1/2 inch Bore 40mm Outside Dia
UCW201-8 Imperial Bearing Insert with 1/2 inch Bore 40mm Outside Dia
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
In stock
Price Break
3+
CHF 8.06
4+
CHF 7.61
9+
CHF 7.52
19+
CHF 7.43
49+
CHF 7.34
99+
CHF 7.25
499+
CHF 6.79
999+
CHF 6.70
1999+
CHF 6.61
2999+
CHF 6.52
4999+
CHF 6.34
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 40mm
- Style:
- UCW
Technical
Technical
| d | 1/2 inch |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| n | 11.5mm |
| m | 15.9mm |
| G | 4.2mm |
| Grub screw | 10-32 UNF |
| Weight | 0.12 kg |
| Dynamic load | 973 kgf |
| Static load | 487 kgf |
