SKU: UCW.203

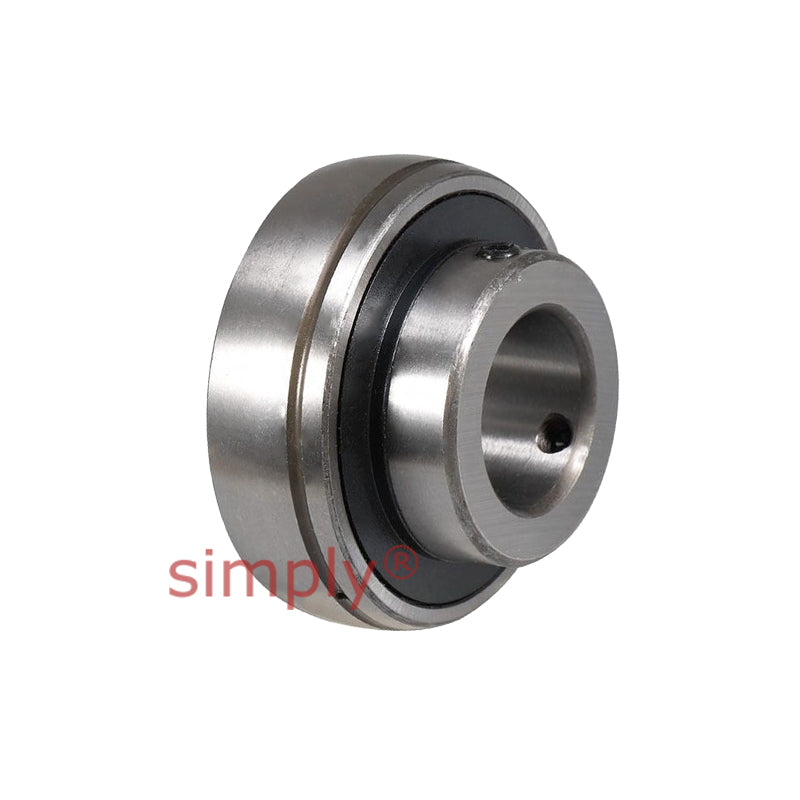

UCW203 Metric Bearing Insert with 17mm Bore 40mm Outside Dia
UCW203 Metric Bearing Insert with 17mm Bore 40mm Outside Dia
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
In stock
Price Break
3+
CHF 8.16
4+
CHF 7.70
9+
CHF 7.61
19+
CHF 7.52
49+
CHF 7.43
99+
CHF 7.34
499+
CHF 6.88
999+
CHF 6.79
1999+
CHF 6.69
2999+
CHF 6.60
4999+
CHF 6.42
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Style:
- UCW
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| n | 11.5mm |
| m | 15.9mm |
| G | 4.2mm |
| Grub screw | M5x0.8 |
| Weight | 0.1 kg |
| Dynamic load | 973 kgf |
| Static load | 487 kgf |
