SKU: UCX.05-16.TS.CHAL

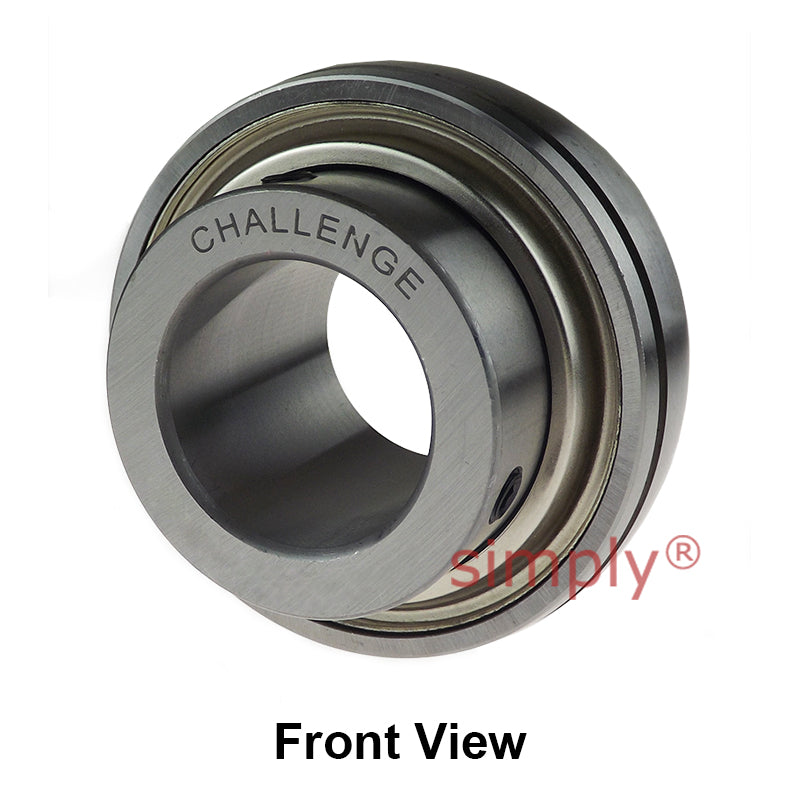

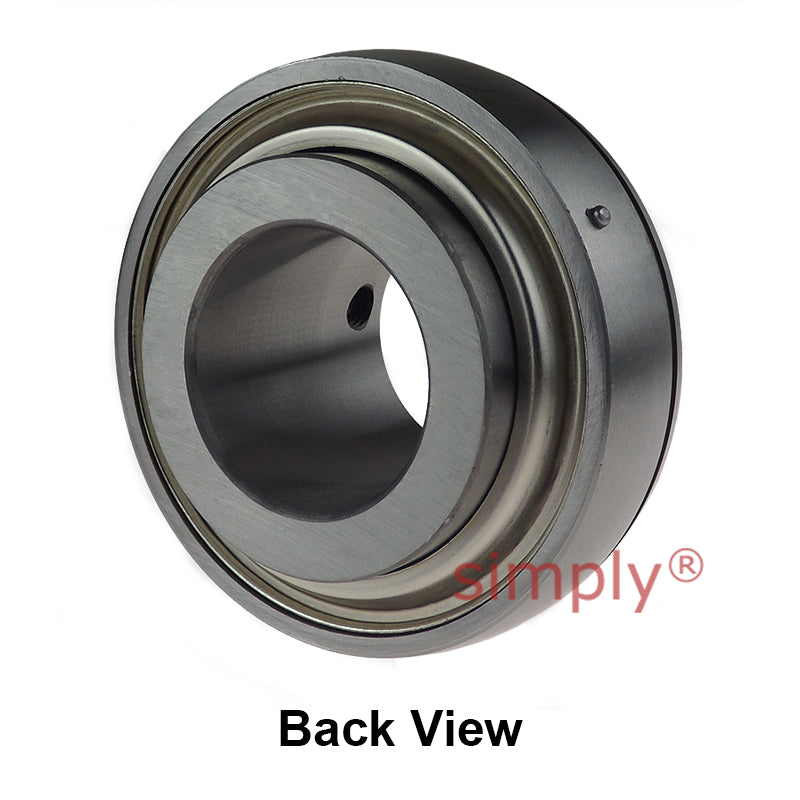

Challenge UCX05-16 Imperial Insert with Grub Screws with 1 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX05-16 Imperial Insert with Grub Screws with 1 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
Equivalent to: UCX.05-16
Low stock
Price Break
3+
CHF 9.23
5+
CHF 8.71
9+
CHF 8.61
19+
CHF 8.50
49+
CHF 8.40
74+
CHF 8.30
99+
CHF 7.78
199+
CHF 7.67
249+
CHF 7.57
499+
CHF 7.47
999+
CHF 7.26
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UCX.05-16
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 1 inch |
|---|---|
| Outside Diameter D | 62mm |
| Overall Width Bi | 38.1mm |
| Inner Race Width Be | 19mm |
| Back of Bearing to Centre Line n | 15.9mm |
| Front of Bearing to Centre Line m | 22.2mm |
| Dimension G | 5mm |
| Grub Screws x 2 | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | 1520kg |
| Load Rating (Static) | 1020kg |
| Max Speed | 3400 rev/min |
| Working Temperature | -30°C to +120°C |
