SKU: UCX.06.TS.CHAL

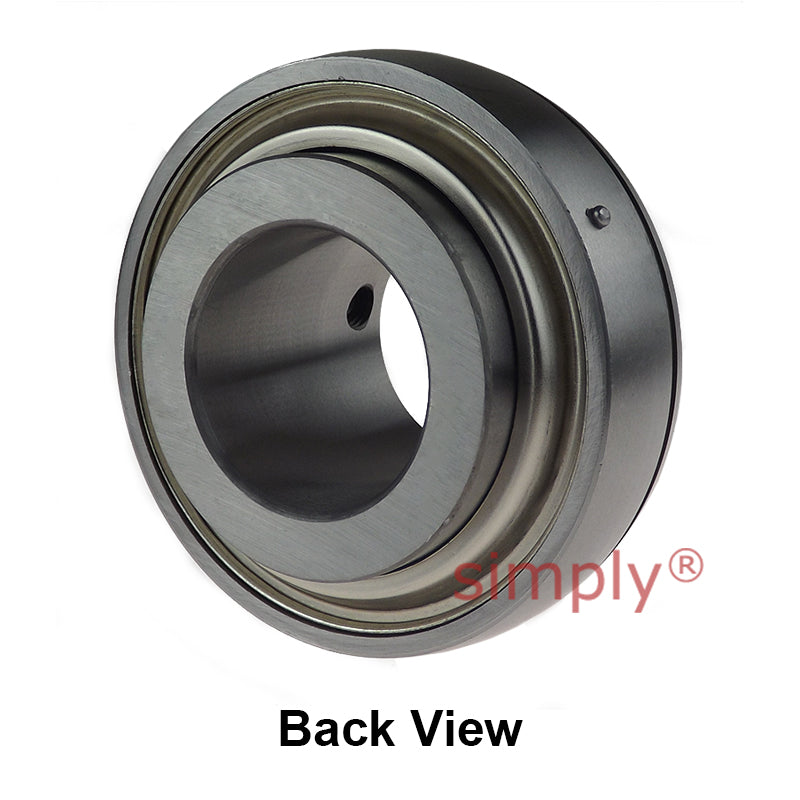

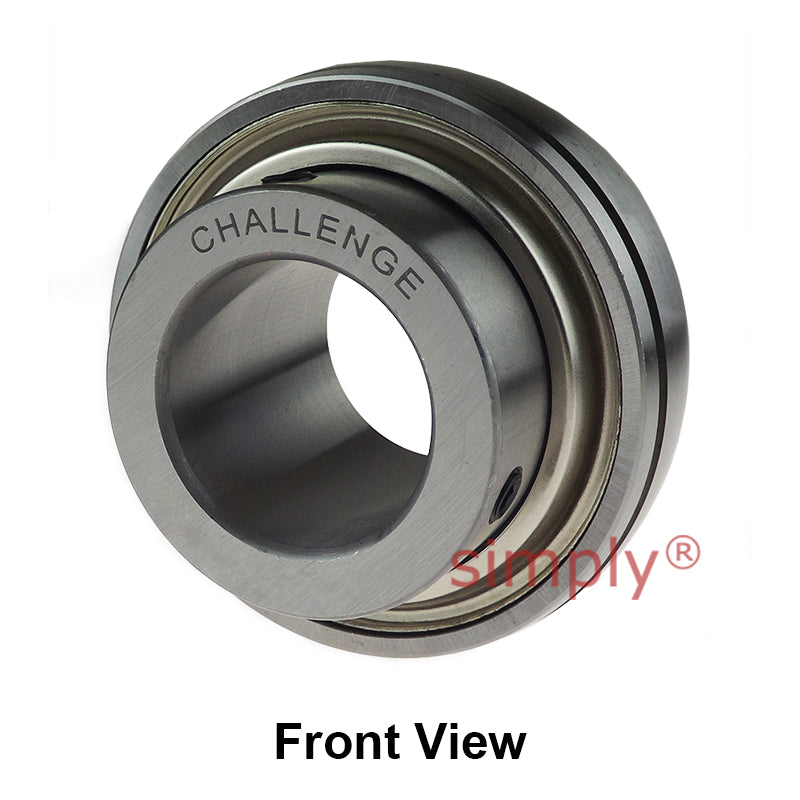

Challenge UCX06 Metric Insert with Grub Screws with 30mm Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UCX06 Metric Insert with Grub Screws with 30mm Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price CHF 34.00 ex VAT
Regular price Sale price CHF 34.00 ex VAT
Sale Sold out

Equivalent to: UCX.06

In stock

Price Break
3+ CHF 26.81
5+ CHF 25.30
9+ CHF 25.00
19+ CHF 24.70
49+ CHF 24.40
74+ CHF 24.09
99+ CHF 22.59
199+ CHF 22.29
249+ CHF 21.99
499+ CHF 21.69
999+ CHF 21.08
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 30mm
Outside Diameter D 72mm
Overall Width Bi 42.9mm
Inner Race Width Be 20mm
Back of Bearing to Centre Line n 17.5mm
Front of Bearing to Centre Line m 25.4mm
Dimension G 6.5mm
Grub Screws x 2 M6x0.75mm
Load Rating (Dynamic) 2010kg
Load Rating (Static) 1390kg
Max Speed 2800 rev/min
Working Temperature -30°C to +120°C
