SKU: UCX.09-27

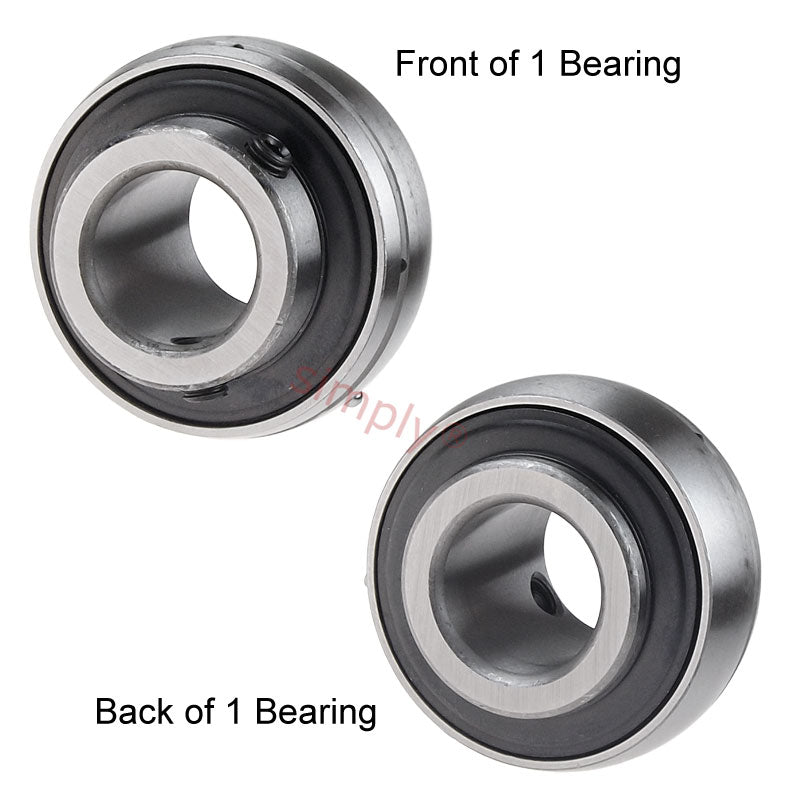

UCX09-27 Imperial Bearing Insert with 1-11/16 inch Bore 90mm Outside Dia
UCX09-27 Imperial Bearing Insert with 1-11/16 inch Bore 90mm Outside Dia
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
Equivalent to: 1050-1-11/16G
In stock
Price Break
3+
CHF 20.29
4+
CHF 19.15
9+
CHF 18.92
19+
CHF 18.69
49+
CHF 18.47
99+
CHF 18.24
499+
CHF 17.10
999+
CHF 16.87
1999+
CHF 16.64
2999+
CHF 16.41
4999+
CHF 15.96
Description
Description
|
UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
Equivalent: 1050-1-11/16G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 90mm
- Style:
- UCX
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| n | 19mm |
| m | 32.6mm |
| G | 10mm |
| Grub screw | 3/8-24-unf |
| Weight | 0.97 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
