SKU: UCX.14.TS.CHAL

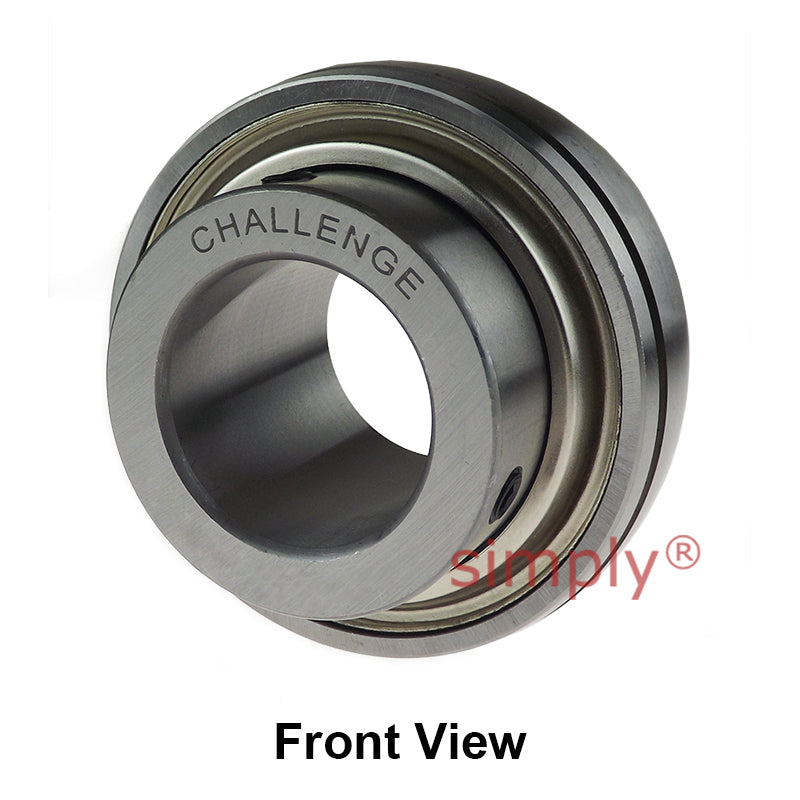

Challenge UCX14 Metric Insert with Grub Screws with 70mm Bore 130mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX14 Metric Insert with Grub Screws with 70mm Bore 130mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 149.00
ex VAT
Regular price
Sale price
CHF 149.00
ex VAT
Equivalent to: UCX.14
In stock
Price Break
3+
CHF 118.29
5+
CHF 111.64
9+
CHF 110.31
19+
CHF 108.98
49+
CHF 107.65
74+
CHF 106.33
99+
CHF 99.68
199+
CHF 98.35
249+
CHF 97.02
499+
CHF 95.69
999+
CHF 93.03
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UCX.14
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 70mm
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 70mm |
|---|---|
| Outside Diameter D | 130mm |
| Overall Width Bi | 77.8mm |
| Inner Race Width Be | 32mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Front of Bearing to Centre Line m | 44.5mm |
| Dimension G | 12mm |
| Grub Screws x 2 | M12X1.50mm |
| Load Rating (Dynamic) | 5190kg |
| Load Rating (Static) | 4190kg |
| Max Speed | 1300 rev/min |
| Working Temperature | -30°C to +120°C |
