SKU: UELFL205D1-NTN
NTN UELFL205D1 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELFL205D1 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
3+
CHF 27.49
4+
CHF 25.95
9+
CHF 25.64
19+
CHF 25.33
49+
CHF 25.02
99+
CHF 24.71
499+
CHF 23.17
999+
CHF 22.86
1999+
CHF 22.55
2999+
CHF 22.24
4999+
CHF 21.62
Share this product
Description
Description
UELFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UELFL
- Bolt Hole Centres:
- 99mm

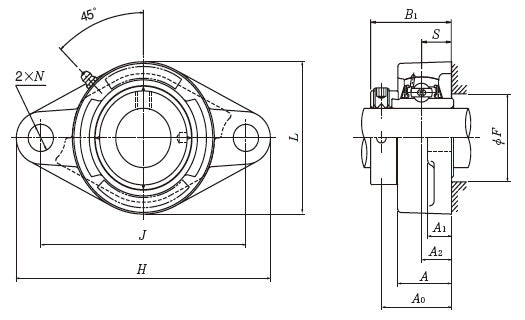

Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| H | 130mm |
| J | 99mm |
| A<sub>2</sub> | 16mm |
| A<sub>1</sub> | 13mm |
| A | 27mm |
| N | 16mm |
| L | 68mm |
| A<sub>0</sub> | 42.95mm |
| B<sub>1</sub> | 44.4mm |
| S | 17.45mm |
| F min. | 38mm |
| Fixing bolt | M14 |
| Mass | 0.7 kg |
