SKU: UELP310D1W3-NTN

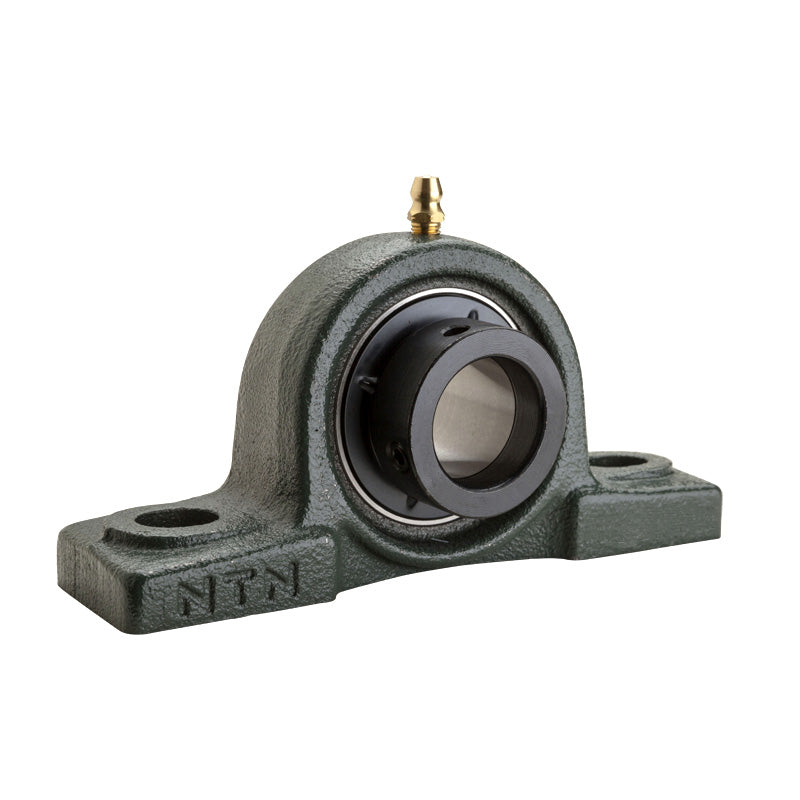

NTN UELP310D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
NTN UELP310D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 149.00
ex VAT
Regular price
Sale price
CHF 149.00
ex VAT
In stock
Price Break
3+
CHF 131.60
4+
CHF 126.28
9+
CHF 123.62
19+
CHF 119.64
49+
CHF 116.98
99+
CHF 110.33
499+
CHF 93.05
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
UELP300 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UELP
- Bolt Hole Centres:
- 212mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 75mm |
| L | 275mm |
| J | 212mm |
| A | 75mm |
| N | 20mm |
| N<sub>1</sub> | 35mm |
| H<sub>1</sub> | 27mm |
| H<sub>2</sub> | 143mm |
| L<sub>1</sub> | 75mm |
| B<sub>1</sub> | 66.6mm |
| S | 24.6mm |
| Fixing bolt | M16 |
| Mass | 5.8 kg |
