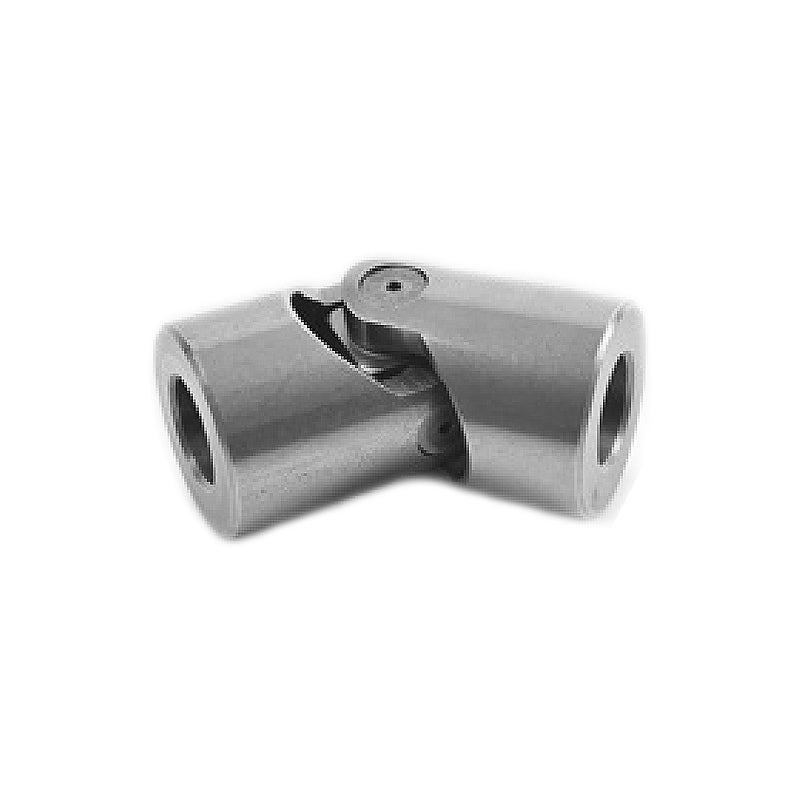

Branded UJSN22X10 Steel Universal Single Joint with Needle Roller Bearing 10x22x48mm
Branded UJSN22X10 Steel Universal Single Joint with Needle Roller Bearing 10x22x48mm
Regular price
CHF 83.98
ex VAT
Regular price
Sale price
CHF 83.98
ex VAT
In stock
Price Break
10+
CHF 74.74
19+
CHF 70.54
29+
CHF 69.70
39+
CHF 68.86
49+
CHF 68.02
74+
CHF 67.18
99+
CHF 62.99
199+
CHF 62.15
249+
CHF 61.31
499+
CHF 60.47
999+
CHF 58.79
Couldn't load pickup availability
Description
Description
UJSN Steel Universal Single Joint with Needle Roller Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a needle roller bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Length:
- 48mm
- Style:
- UJSN
Technical
Technical
| Bore d H7 | 10mm |
|---|---|
| Diameter D | 22mm |
| Overall length L2 | 48mm |
| Pivot centre L1 | 24mm |
| Hub length C | 12mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 4000 rpm |
| Maximum power | 40kW |
| Maximum torque | 200 Nm |
| Weight KG | 0.1 kg |
