SKU: UJSN45X22-MB

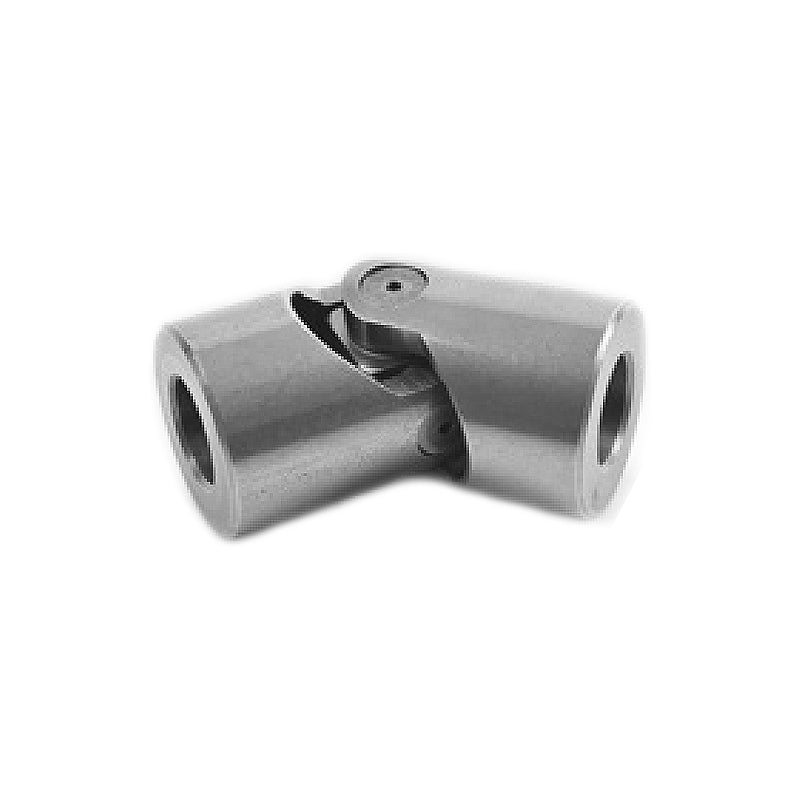

Branded UJSN45X22 Steel Universal Single Joint with Needle Roller Bearing 22x45x95mm
Branded UJSN45X22 Steel Universal Single Joint with Needle Roller Bearing 22x45x95mm
Regular price
CHF 124.88
ex VAT
Regular price
Sale price
CHF 124.88
ex VAT
In stock
Price Break
10+
CHF 111.14
19+
CHF 104.90
29+
CHF 103.65
39+
CHF 102.40
49+
CHF 101.15
74+
CHF 99.90
99+
CHF 93.66
199+
CHF 92.41
249+
CHF 91.16
499+
CHF 89.91
999+
CHF 87.42
Couldn't load pickup availability
Description
Description
UJSN Steel Universal Single Joint with Needle Roller Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a needle roller bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 22mm
- Outside Diameter:
- 45mm
- Length:
- 95mm
- Style:
- UJSN
Technical
Technical
| Bore d H7 | 22mm |
|---|---|
| Diameter D | 45mm |
| Overall length L2 | 95mm |
| Pivot centre L1 | 47.5mm |
| Hub length C | 22mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 4000 rpm |
| Maximum power | 40kW |
| Maximum torque | 200 Nm |
| Weight KG | 0.95 kg |
