SKU: UJSP16X6ST-MB

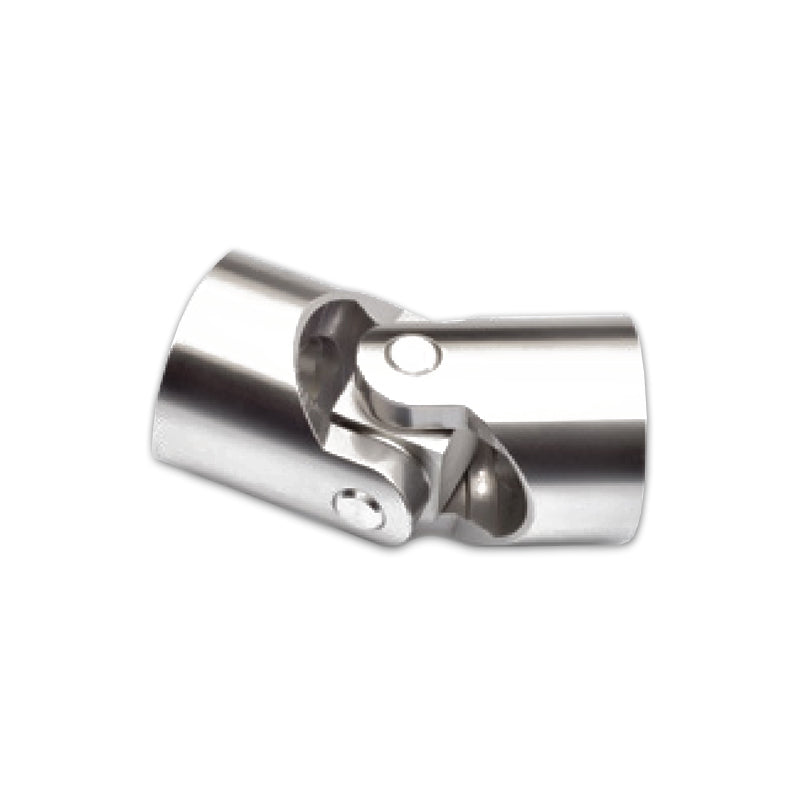

Branded UJSP16X6ST Stainless Steel 304 Universal Single Joint with Plain Bearing 6x16x34mm
Branded UJSP16X6ST Stainless Steel 304 Universal Single Joint with Plain Bearing 6x16x34mm
Regular price
CHF 80.68
ex VAT
Regular price
Sale price
CHF 80.68
ex VAT
In stock
Price Break
10+
CHF 71.81
19+
CHF 67.77
29+
CHF 66.96
39+
CHF 66.16
49+
CHF 65.35
74+
CHF 64.54
99+
CHF 60.51
199+
CHF 59.70
249+
CHF 58.90
499+
CHF 58.09
999+
CHF 56.48
Couldn't load pickup availability
Description
Description
UJSP Stainless Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of stainless steel 304 with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 6mm
- Outside Diameter:
- 16mm
- Length:
- 34mm
- Style:
- UJSP
Technical
Technical
| Bore d H7 | 6mm |
|---|---|
| Diameter D | 16mm |
| Overall length L2 | 34mm |
| Pivot centre L1 | 17mm |
| Hub length C | 8mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG01M16 |
| Weight KG | 0.05 kg |
