SKU: UJSP25X12ST-MB

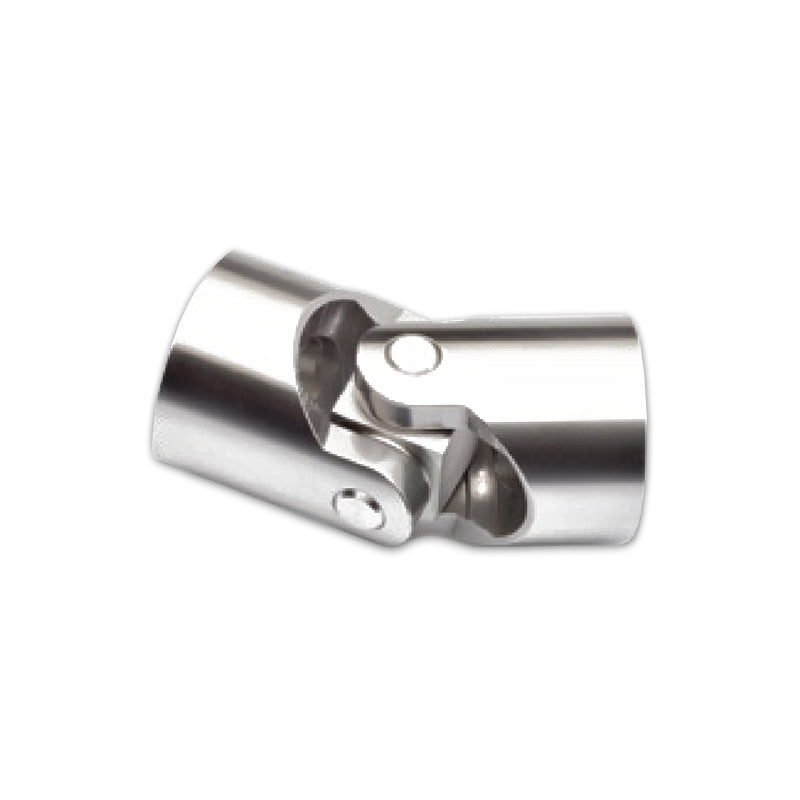

Branded UJSP25X12ST Stainless Steel 304 Universal Single Joint with Plain Bearing 12x25x56mm
Branded UJSP25X12ST Stainless Steel 304 Universal Single Joint with Plain Bearing 12x25x56mm
Regular price
CHF 88.08
ex VAT
Regular price
Sale price
CHF 88.08
ex VAT
In stock
Price Break
10+
CHF 78.39
19+
CHF 73.99
29+
CHF 73.11
39+
CHF 72.23
49+
CHF 71.34
74+
CHF 70.46
99+
CHF 66.06
199+
CHF 65.18
249+
CHF 64.30
499+
CHF 63.42
999+
CHF 61.66
Couldn't load pickup availability
Description
Description
UJSP Stainless Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of stainless steel 304 with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 12mm
- Outside Diameter:
- 25mm
- Length:
- 56mm
- Style:
- UJSP
Technical
Technical
| Bore d H7 | 12mm |
|---|---|
| Diameter D | 25mm |
| Overall length L2 | 56mm |
| Pivot centre L1 | 28mm |
| Hub length C | 13mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG04M25 |
| Weight KG | 0.16 kg |
