SKU: UJSP42X20ST-MB

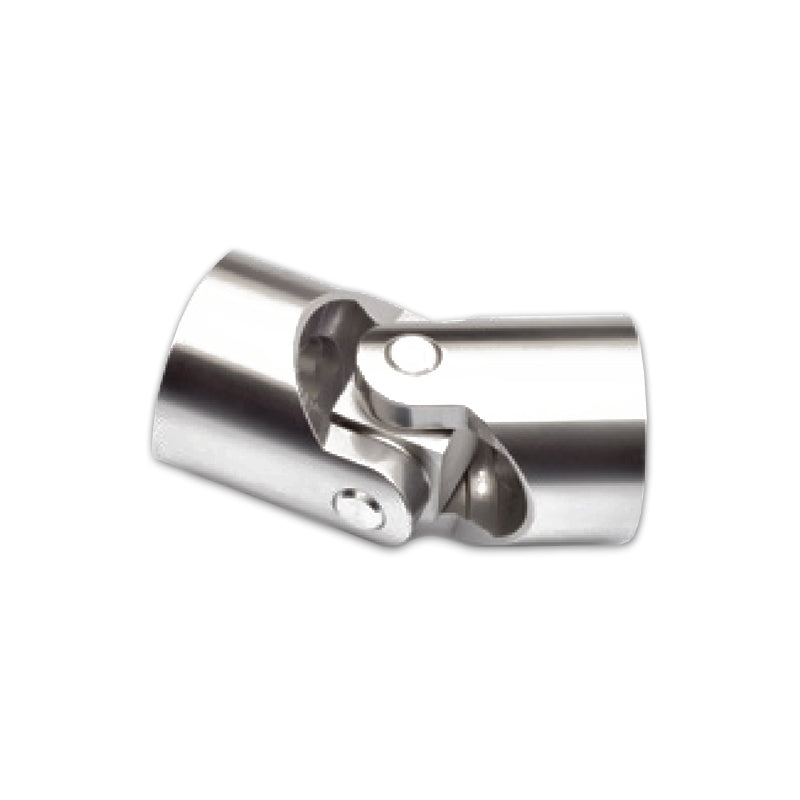

Branded UJSP42X20ST Stainless Steel 304 Universal Single Joint with Plain Bearing 20x42x82mm
Branded UJSP42X20ST Stainless Steel 304 Universal Single Joint with Plain Bearing 20x42x82mm
Regular price
CHF 168.50
ex VAT
Regular price
Sale price
CHF 168.50
ex VAT
In stock
Price Break
10+
CHF 149.97
19+
CHF 141.54
29+
CHF 139.86
39+
CHF 138.17
49+
CHF 136.49
74+
CHF 134.80
99+
CHF 126.38
199+
CHF 124.69
249+
CHF 123.01
499+
CHF 121.32
999+
CHF 117.95
Couldn't load pickup availability
Description
Description
UJSP Stainless Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of stainless steel 304 with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Length:
- 82mm
- Style:
- UJSP
Technical
Technical

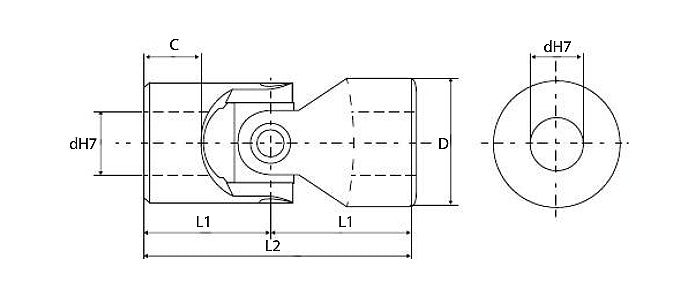

| Bore d H7 | 20mm |
|---|---|
| Diameter D | 42mm |
| Overall length L2 | 82mm |
| Pivot centre L1 | 41mm |
| Hub length C | 18mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG3M42 |
| Weight KG | 0.6 kg |
