SKU: UJSP70X35-MB

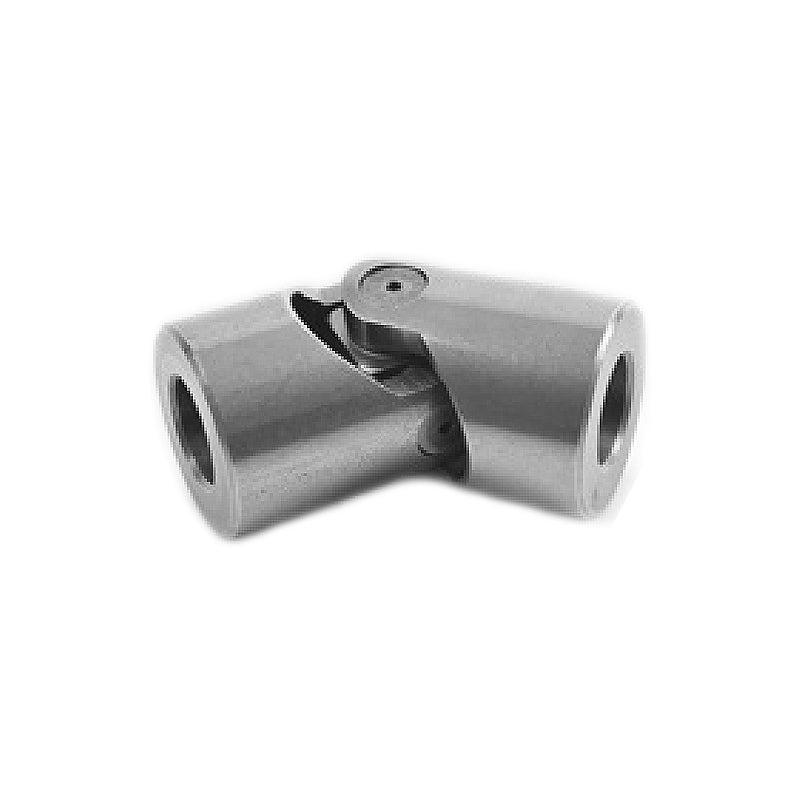

Branded UJSP70X35 Steel Universal Single Joint with Plain Bearing 35x70x140mm
Branded UJSP70X35 Steel Universal Single Joint with Plain Bearing 35x70x140mm
Regular price
CHF 102.54
ex VAT
Regular price
Sale price
CHF 102.54
ex VAT
In stock
Price Break
10+
CHF 91.26
19+
CHF 86.13
29+
CHF 85.11
39+
CHF 84.08
49+
CHF 83.06
74+
CHF 82.03
99+
CHF 76.91
199+
CHF 75.88
249+
CHF 74.85
499+
CHF 73.83
999+
CHF 71.78
Couldn't load pickup availability
Description
Description
UJSP Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 35mm
- Outside Diameter:
- 70mm
- Length:
- 140mm
- Style:
- UJSP
Technical
Technical
| Bore d H7 | 35mm |
|---|---|
| Diameter D | 70mm |
| Overall length L2 | 140mm |
| Pivot centre L1 | 70mm |
| Hub length C | 35mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Weight KG | 3.15 kg |
