SKU: UKC208/H2308

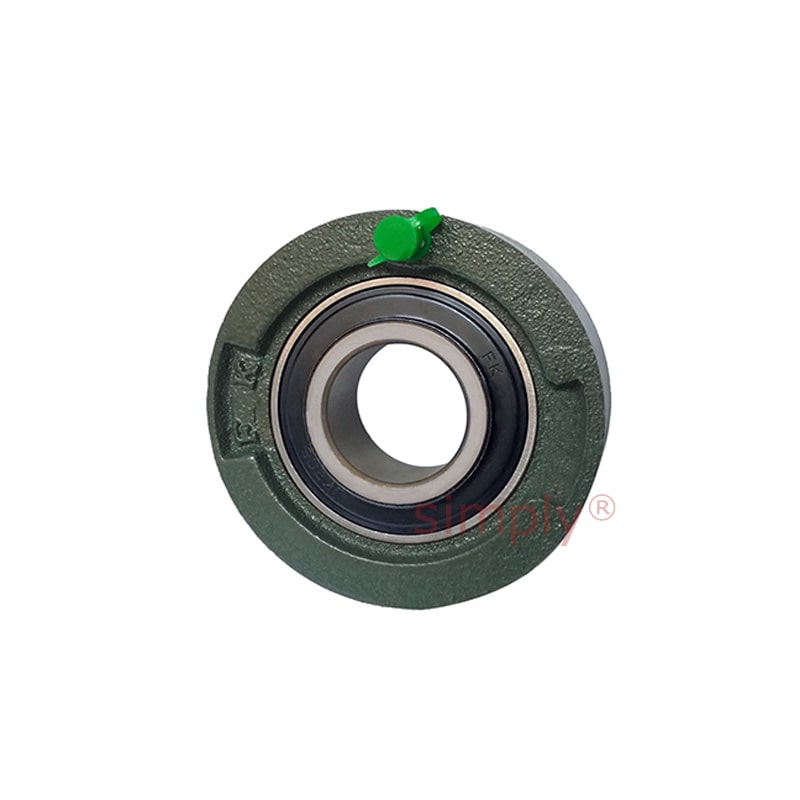

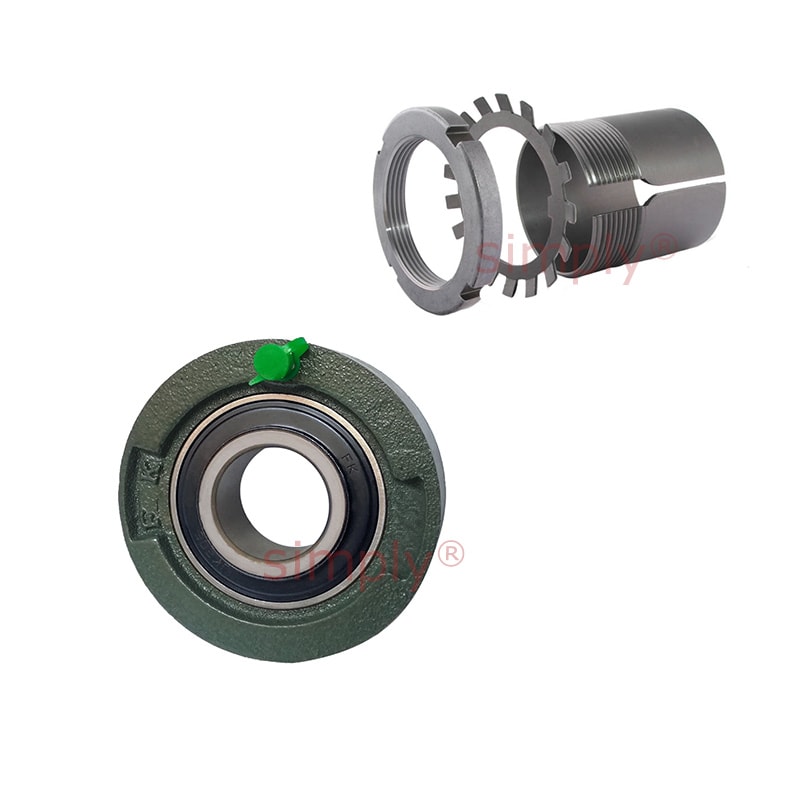

UKC208/H2308 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 35mm Bore Insert 100mm Outside Dia
UKC208/H2308 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 35mm Bore Insert 100mm Outside Dia
Regular price
CHF 48.00
ex VAT
Regular price
Sale price
CHF 48.00
ex VAT
In stock
Price Break
3+
CHF 37.42
4+
CHF 35.32
9+
CHF 34.90
19+
CHF 34.48
49+
CHF 34.06
99+
CHF 33.64
499+
CHF 31.54
999+
CHF 31.12
1999+
CHF 30.69
2999+
CHF 30.27
4999+
CHF 29.43
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 100mm
- Style:
- UKC
Technical
Technical
| Bore d | 35mm |
|---|---|
| Outer Dia a | 100mm |
| g | 30mm |
| r | 2.5mm |
| B | 46mm |
| Bearing No | UK208;H2308 |
| Housing No | C208 |
