SKU: UKC208/HS2308

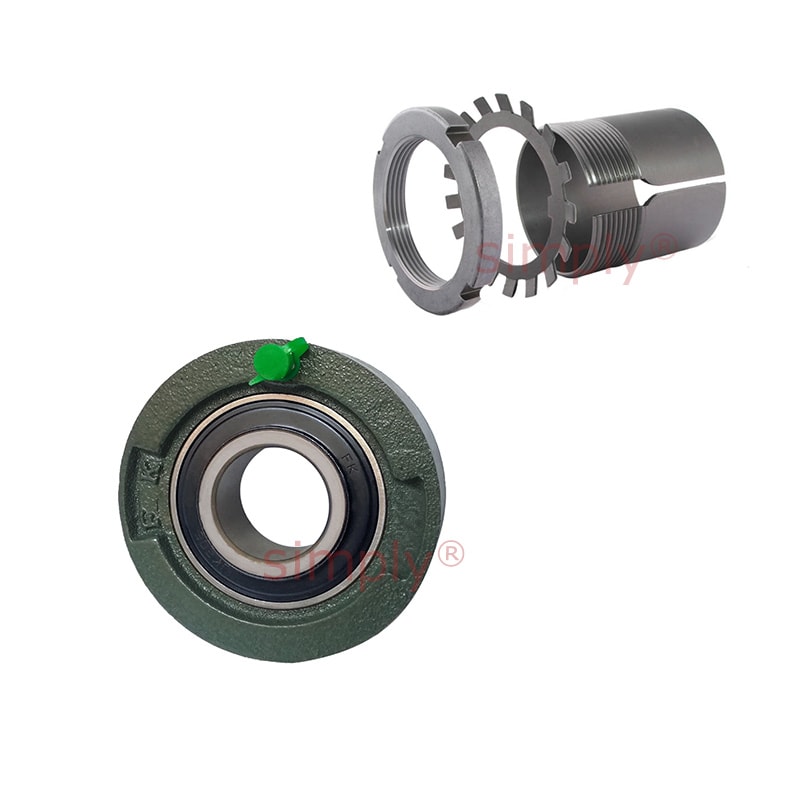

UKC208/HS2308 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-3/8 inch Bore Insert 3.937 inch Outside Dia
UKC208/HS2308 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-3/8 inch Bore Insert 3.937 inch Outside Dia
Regular price
CHF 75.10
ex VAT
Regular price
Sale price
CHF 75.10
ex VAT
In stock
Price Break
10+
CHF 66.84
19+
CHF 63.08
29+
CHF 62.33
39+
CHF 61.58
49+
CHF 60.83
74+
CHF 60.08
99+
CHF 56.33
199+
CHF 55.57
249+
CHF 54.82
499+
CHF 54.07
999+
CHF 52.57
Couldn't load pickup availability
Description
Description

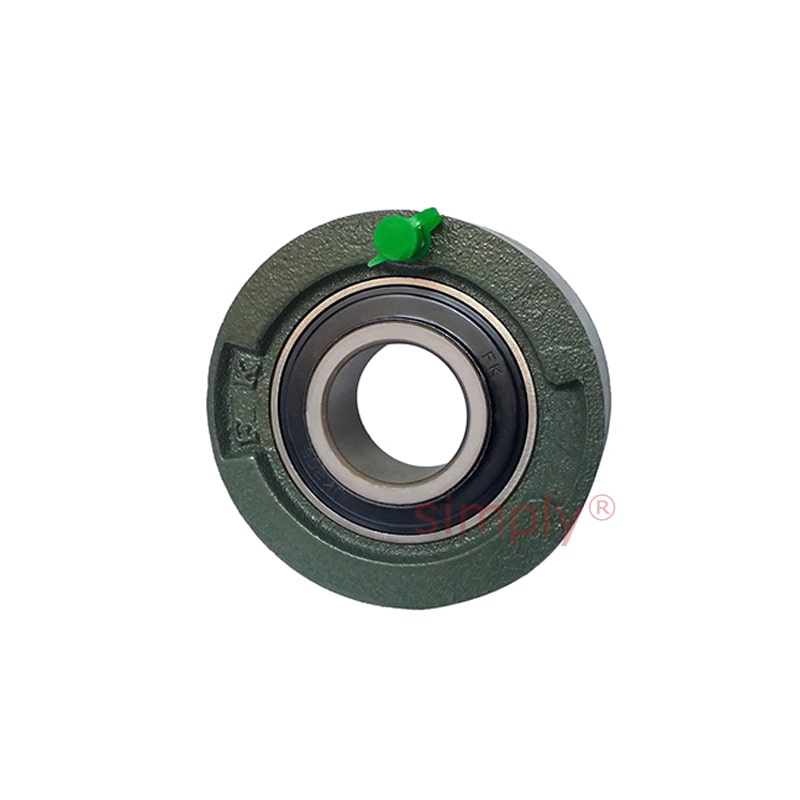

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 100.01mm = 3.937 (3-15/16) inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-3/8 inch |
|---|---|
| Outer Dia a | 3.937 inch |
| g | 1-3/16 inch |
| r | 0.098 inch |
| B | 1.811 inch |
| Bearing No | UK208;HS2308 |
| Housing No | C208 |
