SKU: UKC209/H2309

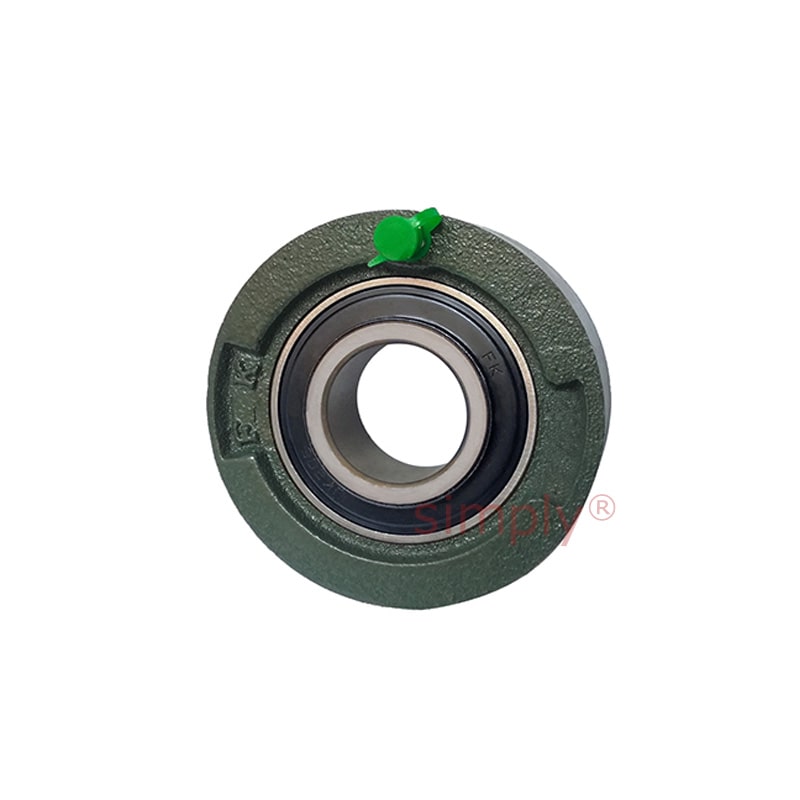

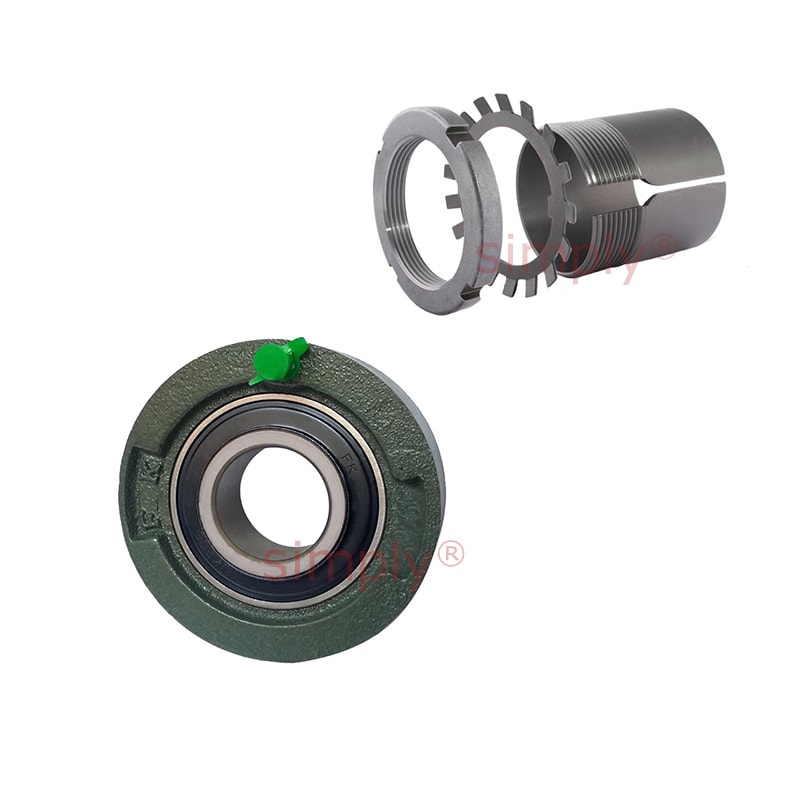

Budget UKC209/H2309 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 40mm Bore Insert 110mm Outside Dia
Budget UKC209/H2309 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 40mm Bore Insert 110mm Outside Dia
Regular price
CHF 47.17
ex VAT
Regular price
Sale price
CHF 47.17
ex VAT
In stock
Price Break
10+
CHF 41.98
19+
CHF 39.62
29+
CHF 39.15
39+
CHF 38.68
49+
CHF 38.21
74+
CHF 37.74
99+
CHF 35.38
199+
CHF 34.91
249+
CHF 34.43
499+
CHF 33.96
999+
CHF 33.02
Couldn't load pickup availability
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 110mm
- Style:
- UKC
Technical
Technical
| Bore d | 40mm |
|---|---|
| Outer Dia a | 110mm |
| g | 31mm |
| r | 2.5mm |
| B | 50mm |
| Bearing No | UK209;H2309 |
| Housing No | C209 |
