SKU: UKC209/HA2309

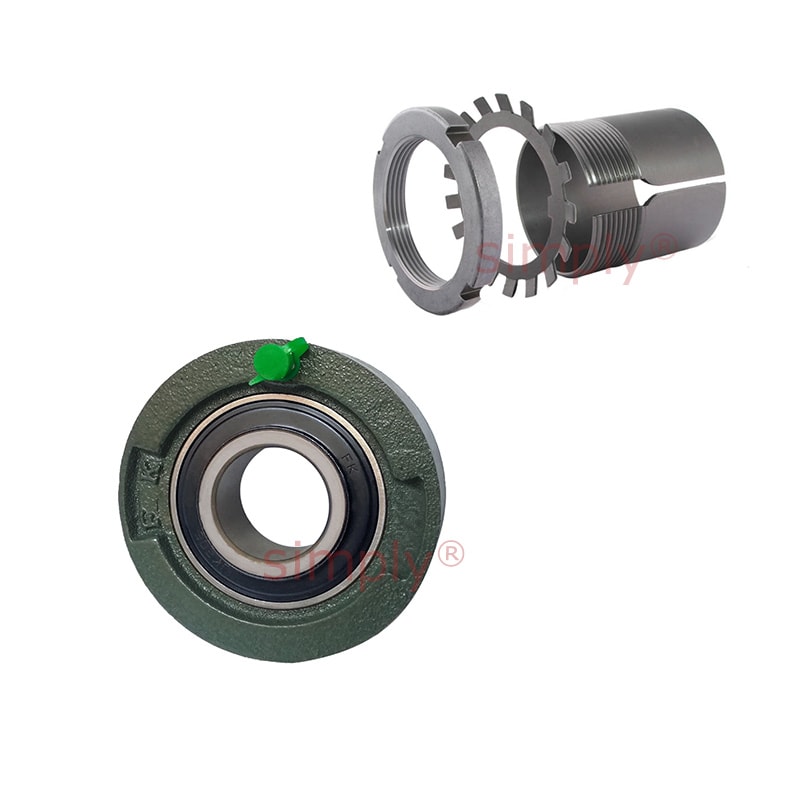

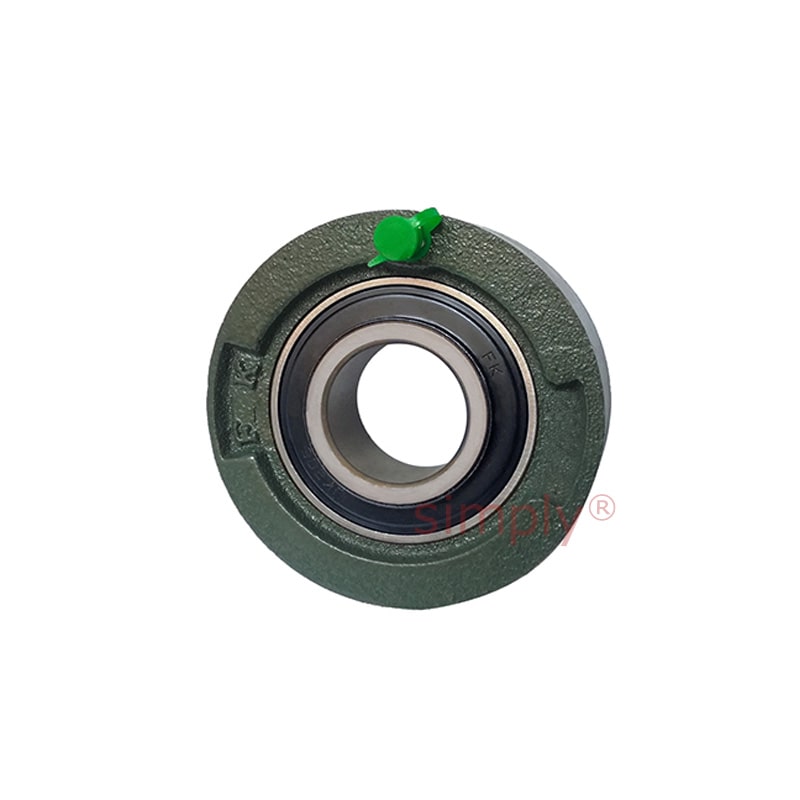

Budget UKC209/HA2309 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-7/16 inch Bore Insert 4.3307 inch Outside Dia
Budget UKC209/HA2309 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-7/16 inch Bore Insert 4.3307 inch Outside Dia
Regular price
CHF 84.90
ex VAT
Regular price
Sale price
CHF 84.90
ex VAT
In stock
Price Break
10+
CHF 75.56
19+
CHF 71.32
29+
CHF 70.47
39+
CHF 69.62
49+
CHF 68.77
74+
CHF 67.92
99+
CHF 63.68
199+
CHF 62.83
249+
CHF 61.98
499+
CHF 61.13
999+
CHF 59.43
Couldn't load pickup availability
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 110mm = 4.3307 inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-7/16 inch |
|---|---|
| Outer Dia a | 4.3307 inch |
| g | 1-7/32 inch |
| r | 0.098 inch |
| B | 1.969 inch |
| Bearing No | UK209;HA2309 |
| Housing No | C209 |
