SKU: UKC209/HE2309
UKC209/HE2309 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-1/2 inch Bore Insert 4.3307 inch Outside Dia
UKC209/HE2309 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-1/2 inch Bore Insert 4.3307 inch Outside Dia
Regular price
CHF 47.17
ex VAT
Regular price
Sale price
CHF 47.17
ex VAT
In stock
Price Break
10+
CHF 41.98
19+
CHF 39.62
29+
CHF 39.15
39+
CHF 38.68
49+
CHF 38.21
74+
CHF 37.74
99+
CHF 35.38
199+
CHF 34.91
249+
CHF 34.43
499+
CHF 33.96
999+
CHF 33.02
Couldn't load pickup availability
Description
Description

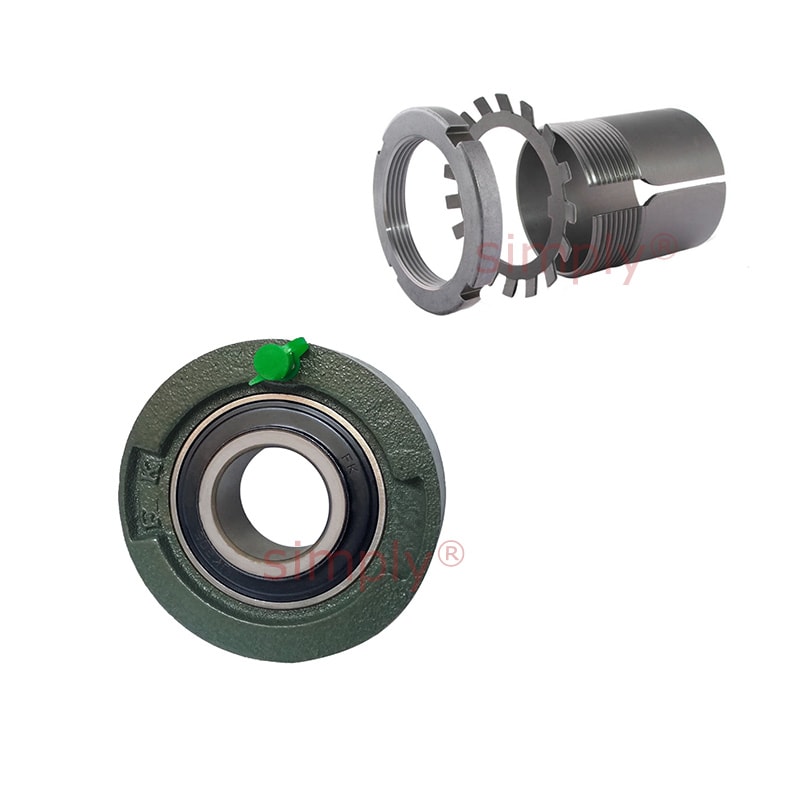

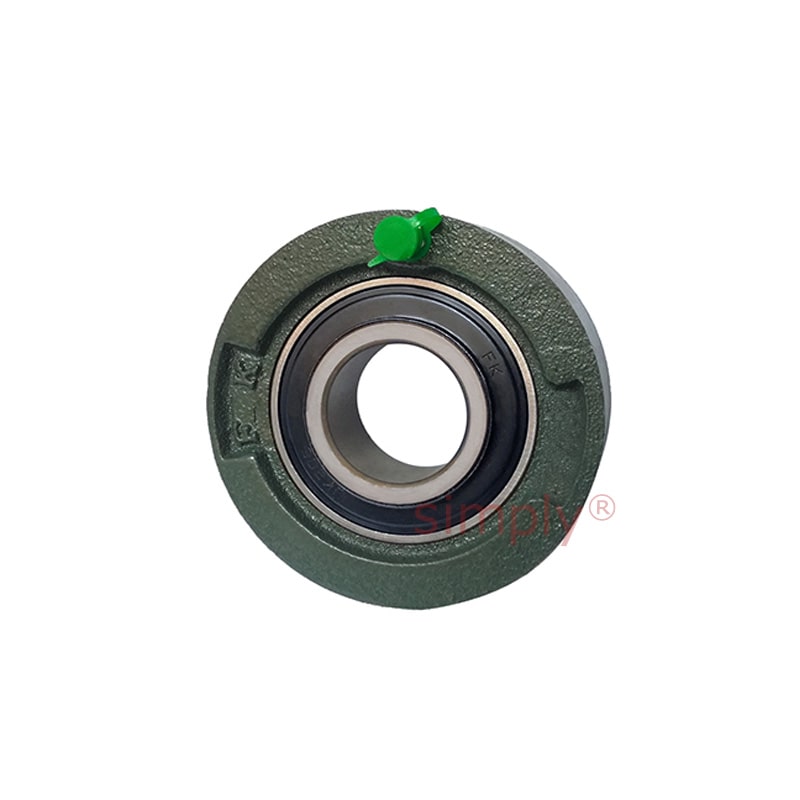

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 110mm = 4.3307 inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-1/2 inch |
|---|---|
| Outer Dia a | 4.3307 inch |
| g | 1-7/32 inch |
| r | 0.098 inch |
| B | 1.969 inch |
| Bearing No | UK209;HE2309 |
| Housing No | C209 |
