SKU: UKC211/HA2311

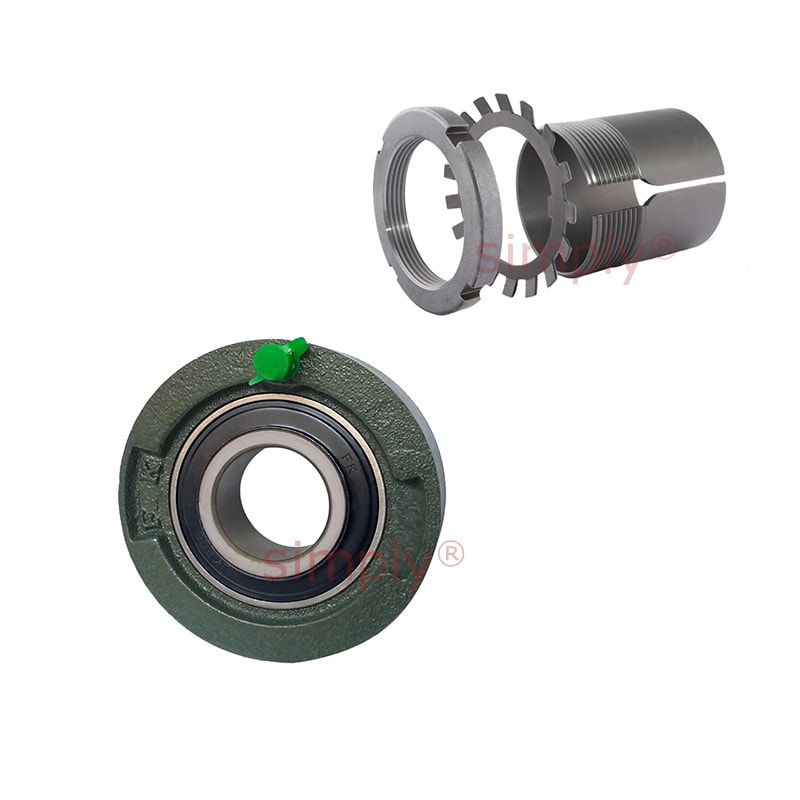

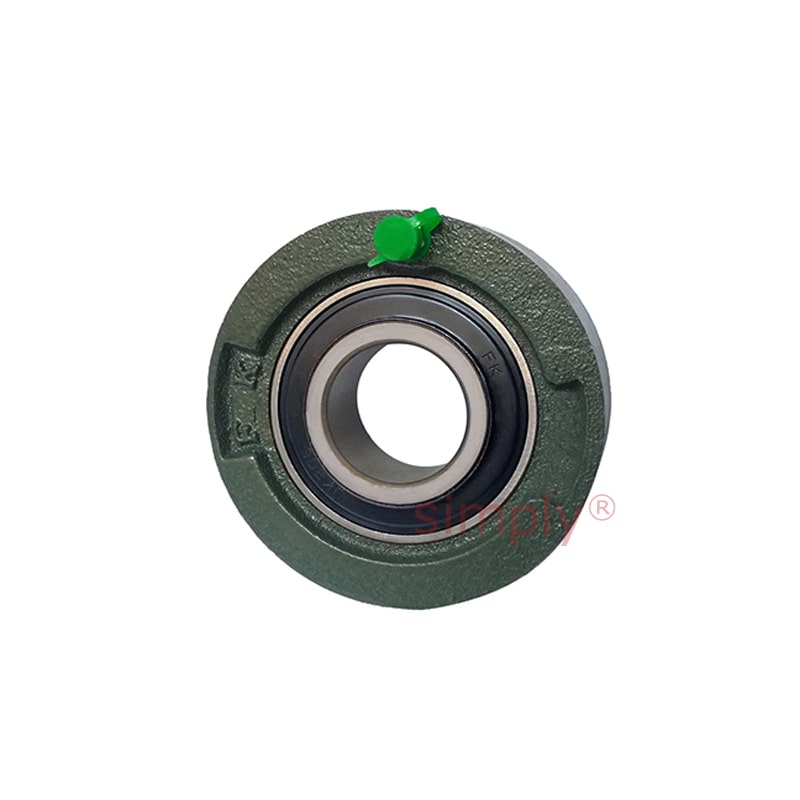

UKC211/HA2311 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-15/16 inch Bore Insert 4.9213 inch Outside Dia
UKC211/HA2311 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-15/16 inch Bore Insert 4.9213 inch Outside Dia
Regular price
CHF 93.00
ex VAT
Regular price
Sale price
CHF 93.00
ex VAT
In stock
Price Break
3+
CHF 73.62
4+
CHF 69.49
9+
CHF 68.66
19+
CHF 67.83
49+
CHF 67.00
99+
CHF 66.18
499+
CHF 62.04
999+
CHF 61.21
1999+
CHF 60.39
2999+
CHF 59.56
4999+
CHF 57.90
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 125.001mm = 4.9213 inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-15/16 inch |
|---|---|
| Outer Dia a | 4.9213 inch |
| g | 1-3/8 inch |
| r | 0.098 inch |
| B | 2.323 inch |
| Bearing No | UK211;HA2311 |
| Housing No | C211 |
