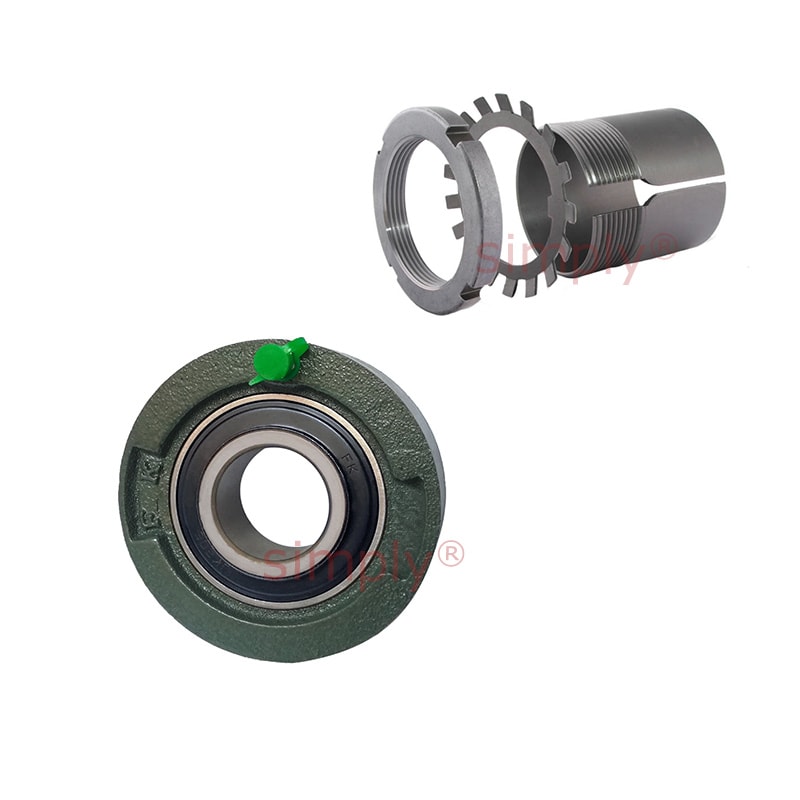

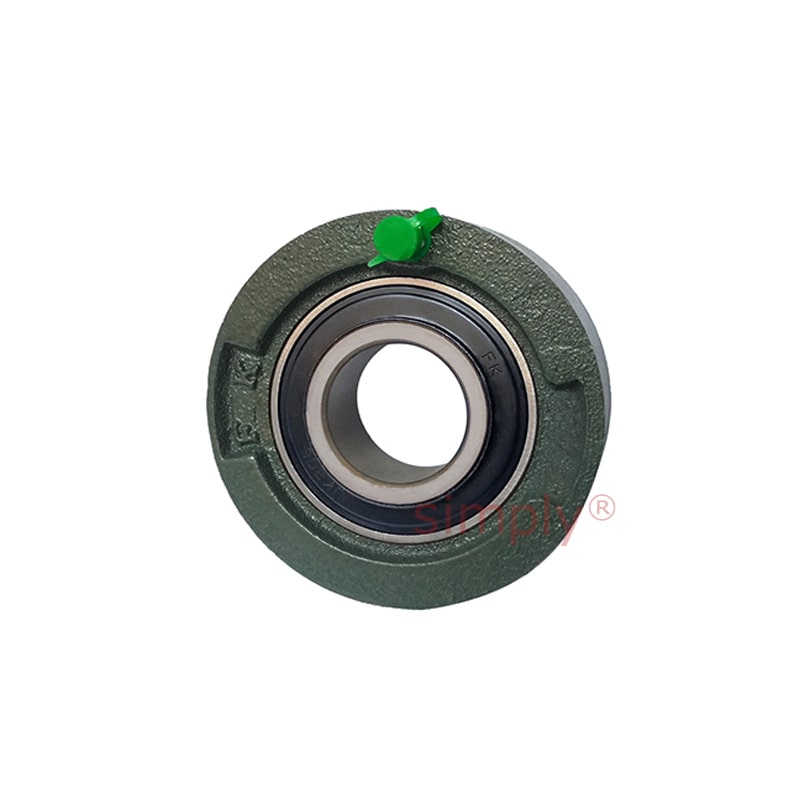

UKC212/H2312 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 55mm Bore Insert 130mm Outside Dia
UKC212/H2312 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 55mm Bore Insert 130mm Outside Dia
Regular price
CHF 79.00
ex VAT
Regular price
Sale price
CHF 79.00
ex VAT
In stock
Price Break
3+
CHF 62.18
4+
CHF 58.69
9+
CHF 57.99
19+
CHF 57.29
49+
CHF 56.59
99+
CHF 55.89
499+
CHF 52.40
999+
CHF 51.70
1999+
CHF 51.00
2999+
CHF 50.30
4999+
CHF 48.90
Share this product
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 130mm
- Style:
- UKC
Technical
Technical
| Bore d | 55mm |
|---|---|
| Outer Dia a | 130mm |
| g | 38mm |
| r | 2.5mm |
| B | 62mm |
| Bearing No | UK212;H2312 |
| Housing No | C212 |
