SKU: UKFA206HCC-SNR

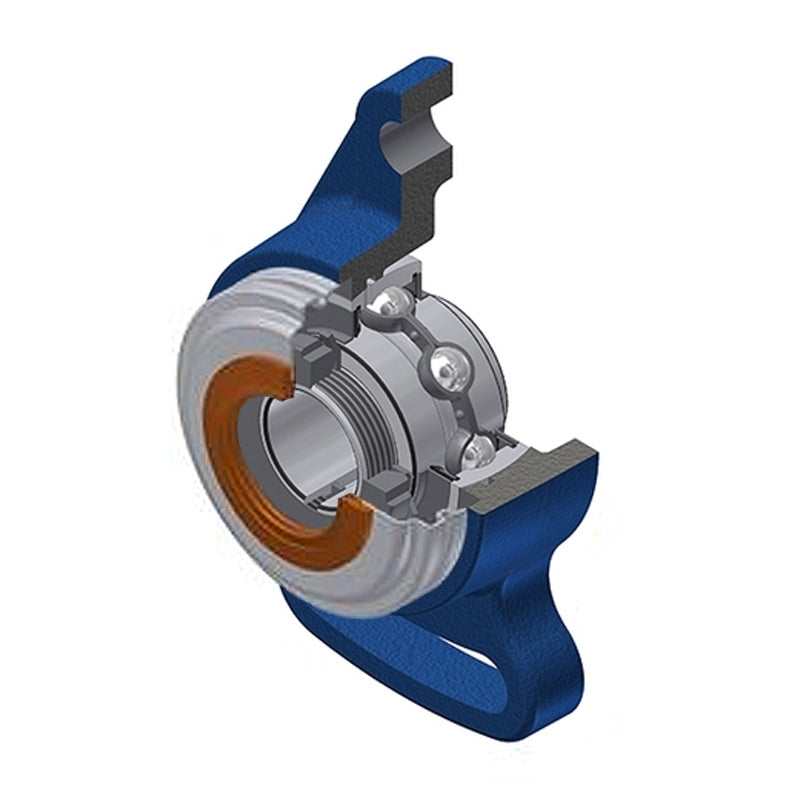

SNR UKFA206HCC Metric Cast Iron Adjustable Flange Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
SNR UKFA206HCC Metric Cast Iron Adjustable Flange Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
3+
CHF 65.76
4+
CHF 63.10
9+
CHF 61.77
19+
CHF 59.78
49+
CHF 58.45
99+
CHF 55.13
499+
CHF 46.49
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
UKFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UKFA
- Bolt Hole Centres:
- 117mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 31mm |
| A1 | 14mm |
| A2 | 38.5mm |
| B | 25mm |
| B1 | 38mm |
| d1 | 45mm |
| e | 18mm |
| H | 144mm |
| J | 117mm |
| J1 | 58mm |
| L | 80mm |
| L1 | 72mm |
| N | 12mm |
| Dz | 70mm |
| Z | 44.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2306 |
| Mass | 1.02 kg |
