SKU: UKFA211HCC-SNR

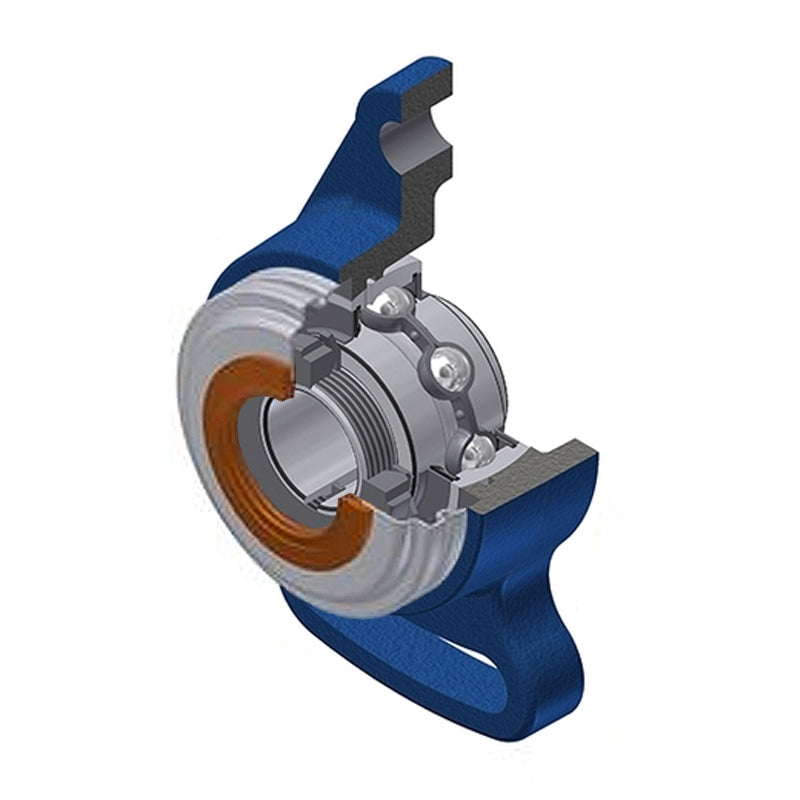

SNR UKFA211HCC Metric Cast Iron Adjustable Flange Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days

SNR UKFA211HCC Metric Cast Iron Adjustable Flange Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
Regular price CHF 124.00 ex VAT
Regular price Sale price CHF 124.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 109.67
4+ CHF 105.24
9+ CHF 103.03
19+ CHF 99.70
49+ CHF 97.49
99+ CHF 91.95
499+ CHF 77.55
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 50mm
A 43mm
A1 20mm
A2 54mm
B 33mm
B1 59mm
d1 75mm
e 25mm
H 219mm
J 184mm
J1 86mm
L 130mm
L1 104mm
N 16mm
Dz 110mm
Z 64.4mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2311
Mass 3.351 kg
