SKU: UKFE211HN-SNR

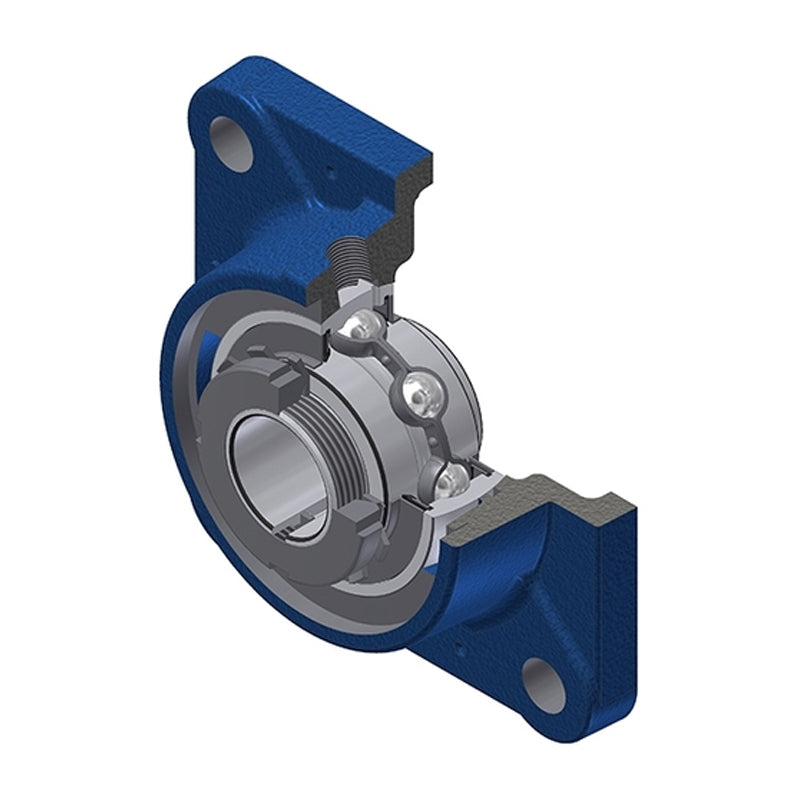

SNR UKFE211HN Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
SNR UKFE211HN Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
Regular price
CHF 112.00
ex VAT
Regular price
Sale price
CHF 112.00
ex VAT
In stock
Price Break
3+
CHF 98.71
4+
CHF 94.72
9+
CHF 92.73
19+
CHF 89.74
49+
CHF 87.74
99+
CHF 82.76
499+
CHF 69.80
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
UKFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UKFE
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 48.5mm |
| A1 | 15mm |
| A2 | 60mm |
| B | 33mm |
| B1 | 59mm |
| d1 | 75mm |
| e | 31mm |
| J | 130mm |
| L | 162mm |
| N | 18mm |
| s1 | 29mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2311 |
| Mass | 3.72 kg |
