SKU: UKPA211H-SNR
SNR UKPA211H Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
SNR UKPA211H Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
Regular price
CHF 112.00
ex VAT
Regular price
Sale price
CHF 112.00
ex VAT
In stock
Price Break
3+
CHF 98.69
4+
CHF 94.71
9+
CHF 92.71
19+
CHF 89.72
49+
CHF 87.73
99+
CHF 82.74
499+
CHF 69.78
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|

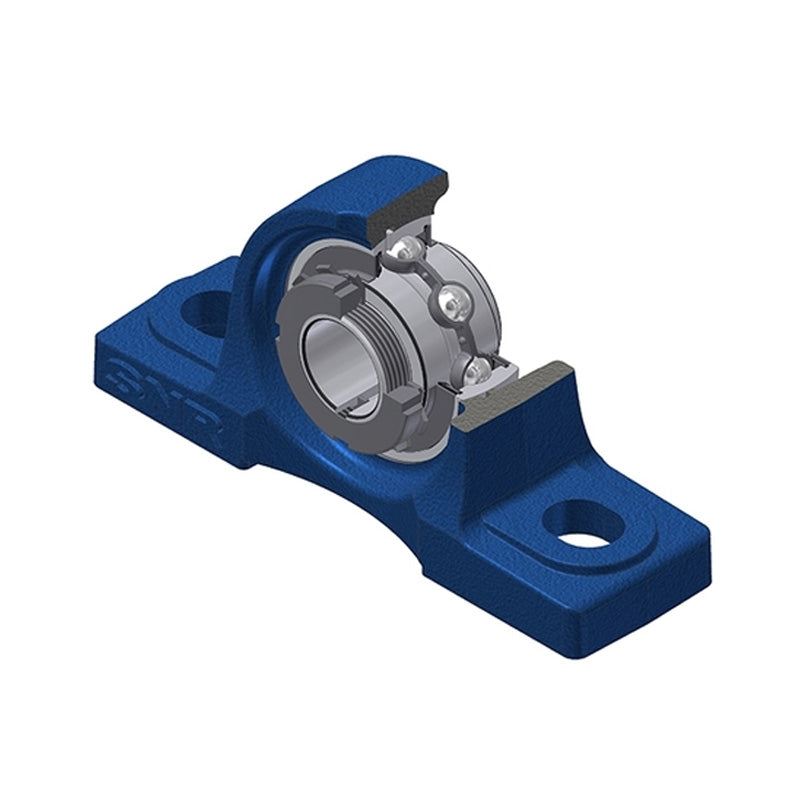

UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UKPA
- Bolt Hole Centres:
- 104mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 66mm |
| A1 | 33mm |
| B | 33mm |
| d1 | 75mm |
| E | 25mm |
| H | 63.5mm |
| H1 | 14mm |
| H2 | 125mm |
| J | 104mm |
| L | 140mm |
| L1 | 47mm |
| N | M16 |
| s1 | 29mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |

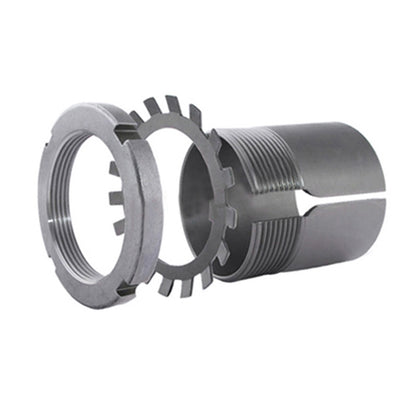

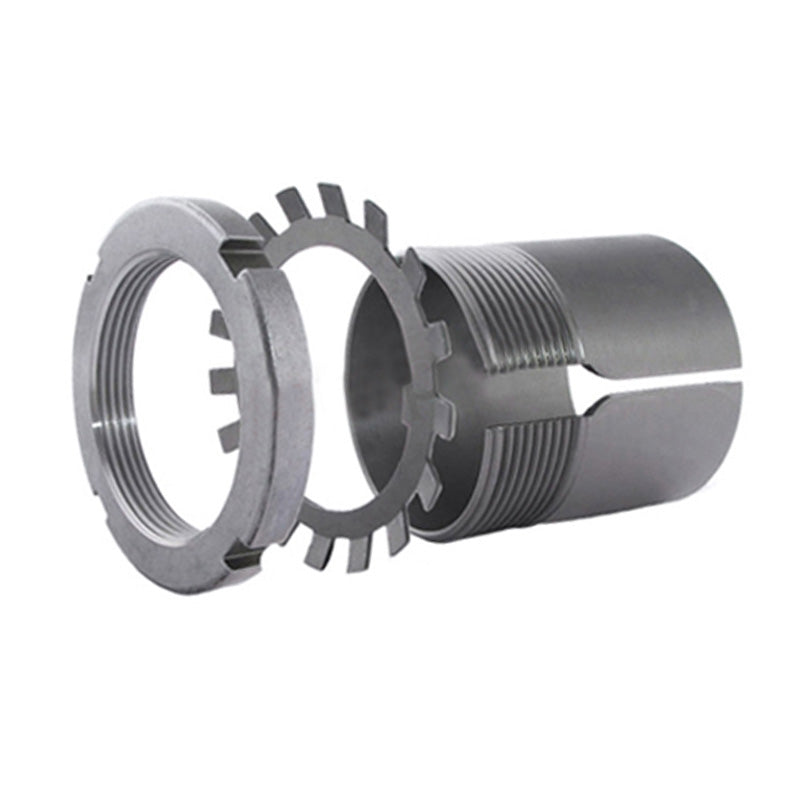

| Adaptor sleeve | H2311 |
| Mass | 3.31 kg |
