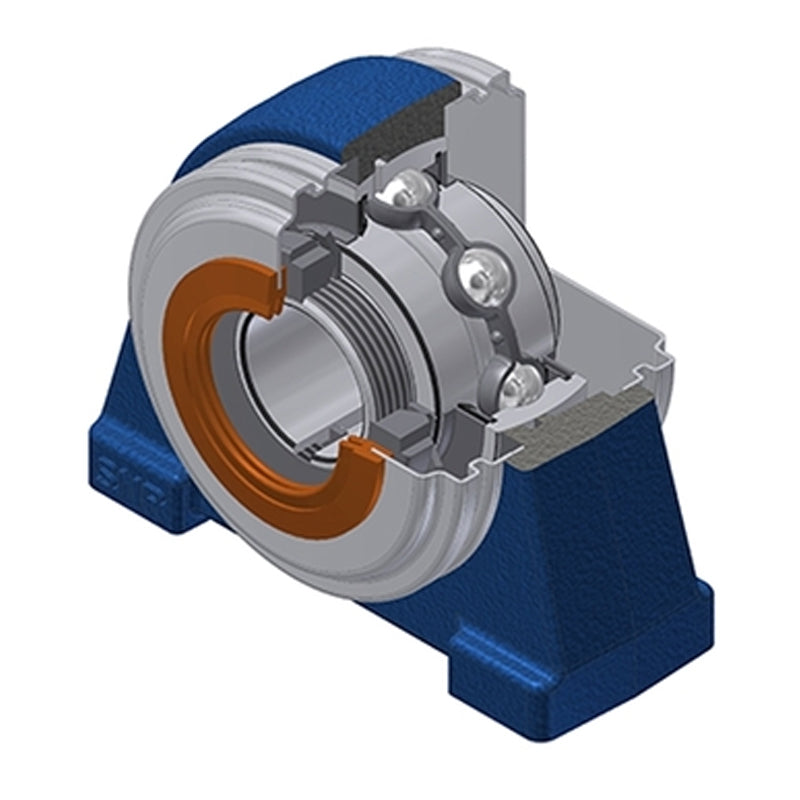

SNR UKPAE209HCC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
SNR UKPAE209HCC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
Regular price
CHF 112.00
ex VAT
Regular price
Sale price
CHF 112.00
ex VAT
In stock
Price Break
3+
CHF 98.73
4+
CHF 94.74
9+
CHF 92.75
19+
CHF 89.76
49+
CHF 87.76
99+
CHF 82.78
499+
CHF 69.81
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UKPAE
- Bolt Hole Centres:
- 95.3mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 48mm |
| A1 | 32mm |
| B | 30mm |
| d1 | 65mm |
| E | 15mm |
| H | 53.9mm |
| H1 | 14mm |
| H2 | 107mm |
| J | 95.3mm |
| L | 120mm |
| L1 | 29mm |
| N | M12 |
| Dz | 95mm |
| Z | 70.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2309 |
| Mass | 2.071 kg |
