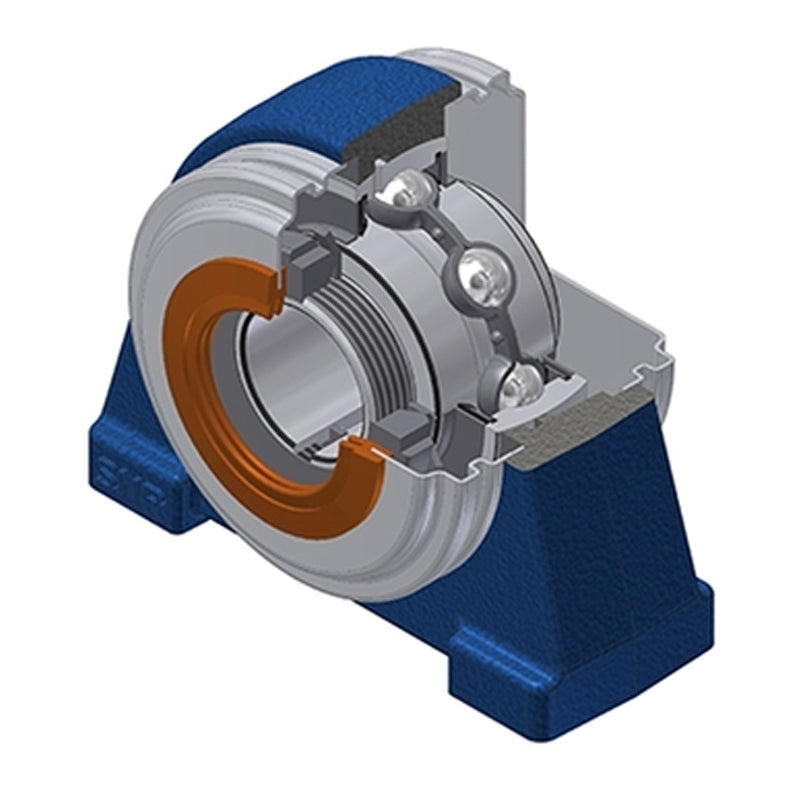

• SNR UKPAE210HCC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
1 1

SKU: UKPAE210HCC-SNR

SNR UKPAE210HCC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days

SNR UKPAE210HCC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
CHF 174.00 ex VAT
CHF 174.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 153.57
4+ CHF 147.36
9+ CHF 144.26
19+ CHF 139.61
49+ CHF 136.51
99+ CHF 128.75
499+ CHF 108.58
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UKPAE
Bolt Hole Centres:
101.6mm
Technical
--- Dimensions
Shaft diameter 45mm
A 54mm
A1 34mm
B 31mm
d1 70mm
E 20mm
H 57.2mm
H1 15mm
H2 115mm
J 101.6mm
L 135mm
L1 33.5mm
N M16
Dz 100mm
Z 76.1mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor sleeve H2310
Mass 2.764 kg
